Heat Shrink Tubes/sleeves

1. The​‍​‌‍​‍‌ bus bar heat shrinker features high dielectric strength, leakage and short circuit prevention, stable power transmission of both indoor and outdoor 10kV-35kV.
2. The product is characterized by high tensile strength, impact resistance, can withstand external mechanical forces, greatly reduce the harm of collisions and abrasion to the busbar.
3. After heating and shrinking, the product will form a tight protective layer, having good moisture resistance, dustproof and weather resistance, and can adapt to the demanding condition of industrial field use for a long ​‍​‌‍​‍‌time.

1.​‍​‌‍​‍‌ We adopt a yellow-green bi-color marking that is an international standard. This way, it is easily visible in dull surroundings with oil, and helps eliminate wire mixing.
2. Our heat shrink tube is colored and has an electric strength of 17.5 kV/mm and can undergo heat aging at 158℃ for 168 hours, which assures that it has a tight, waterproof, corrosionproof and highly insulating characteristics when operating in long-term elevated temperature conditions.
3. Our color heat shrink sleeve is compatible with all sizes (2.0–180.0 mm), complies with UL/IEC standards, and is suitable for a variety of wire ​‍​‌‍​‍‌thicknesses.

1.​‍​‌‍​‍‌ Heat shrink tubings can safely be subjected to a voltage of 2000V for 60 seconds without failure. Their dielectric strength is over 15 kV/mm which guarantees an insulating layer around electrical joints.
2. Wire heat shrink from our range retains great physical characteristics within the temperature extremes of -40℃ and 125℃ and withstands long-term thermal aging conditions.
3. Wire shrink wrap of ours can be applied with a heat gun, is low-voltage safe, and avoids ​‍​‌‍​‍‌shorts.

1.​‍​‌‍​‍‌ Our flame retardant heat shrink tubing not only conforms to VW-1 flame retardant standards but also becomes self-extinguishing if caught on fire, thus significantly enhances the safety of your electric equipment.
2. This type of heat shrink tubing has very high insulating property, scratch resistance and anticorrosive qualities which make it the right product to use in the most adverse environments.
3.The flame retardant shrink tubing of ours shrinks well even in low temperatures, installation is very simple, and it can adapt to all sorts of cable ​‍​‌‍​‍‌protections.

1.Tri-layer shrinkable tube for cable joint adopts semi-conductive layer, insulating layer and elastic layer co-extrusion design.
2. Riple layer heat shrinkable tubing Crosslinked thick-walled structure has high resilience.
3.Tri-layer heat shrink tube is suitable for 6- 36kV voltage class, up to 42kV power cable joint insulation treatment.

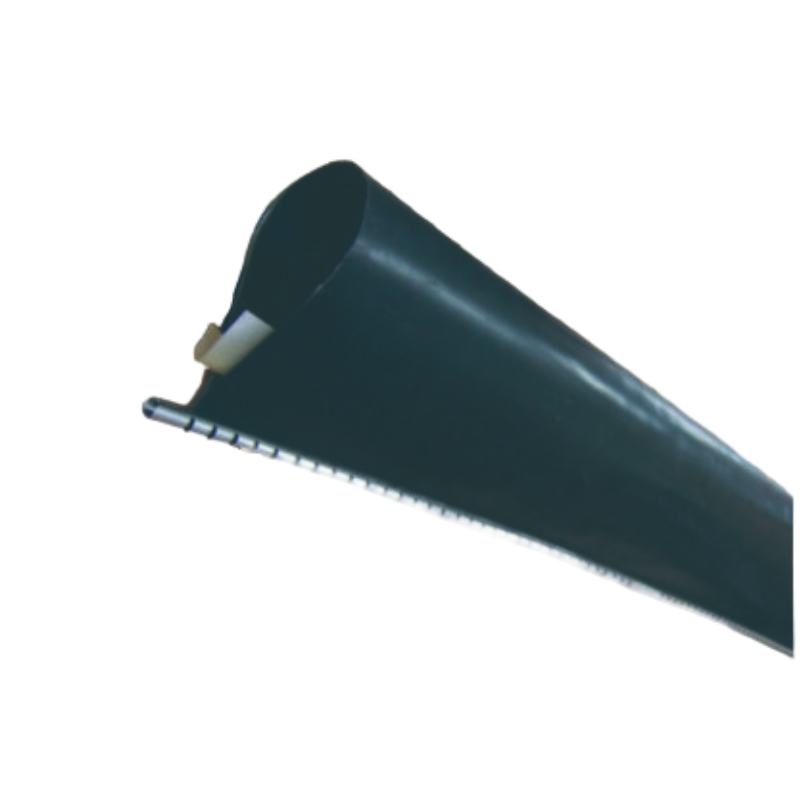

1.​‍​‌‍​‍‌ Heat shrink cable repair sleeves are ideal for fixing scratches or damage on cables, pipes, or equipment. They can quickly restore the protective features of the cables.
2. Heat shrink wire repair sleeves provide excellent insulative protection as well as a sealing function, protecting against moisture and external environmental corrosion.
3. Heat shrink repair sleeves extend the life spans of damaged cables by giving them a strong physical structure, thus making the cables more reliable in the long ​‍​‌‍​‍‌haul.

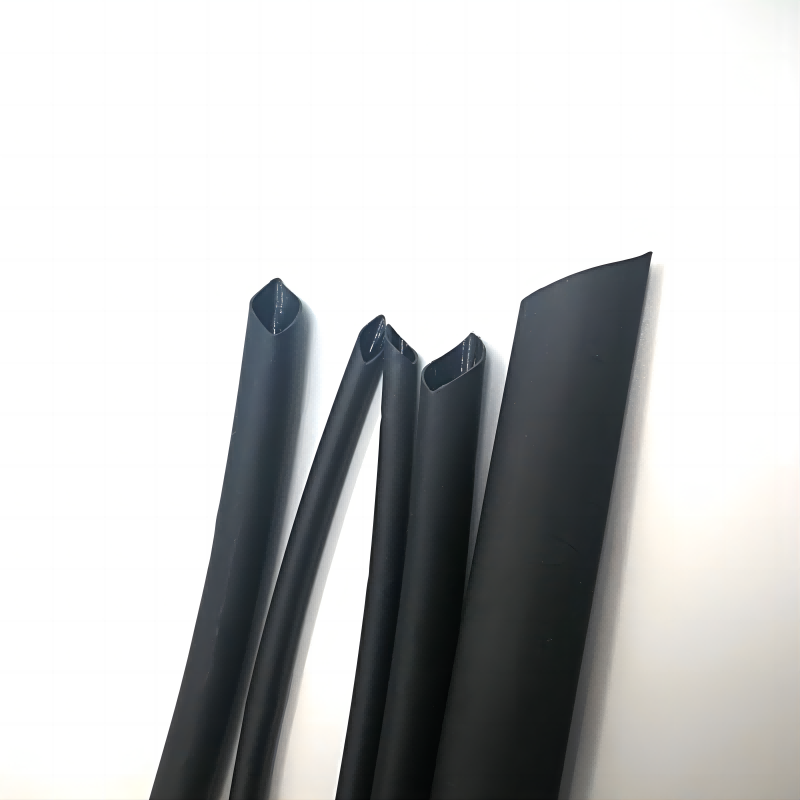

1.​‍​‌‍​‍‌ The adhesive-lined heat shrink tube has a two-layer construction that results in an extremely strong seal layer when heated and offers waterproof, waterproof, insulation and corrosion-resistant advantages.
2. Heat shrink tube with glue can form a bond with different materials like plastic, rubber as well as metal that would ensure a reliable sealing and a mechanical protection of the cables connected to each other.
3. Dual wall adhesive heat shrink is suitable for temperatures ranging from - 45℃ to 125℃ and is a good fit for various automotive, electric, electronic and industrial equipment application ​‍​‌‍​‍‌scenarios.

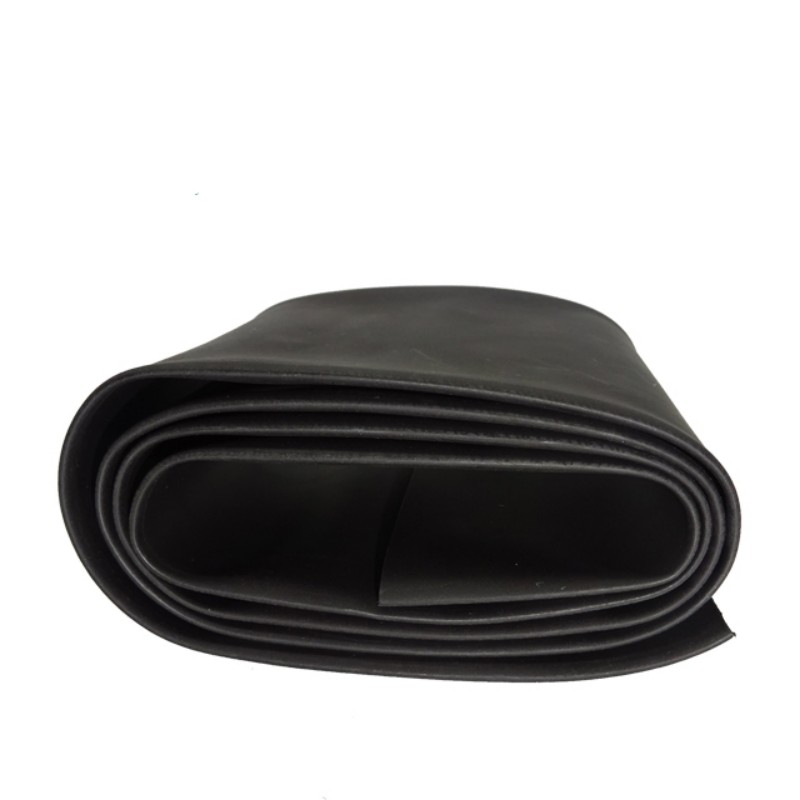

1. Stress control sleeves homogenize the electric field distribution at medium and high voltage cable terminations and joints, reducing the risk of partial discharge and insulation breakdown.
2. We use a heat-shrink installation method, which, when heated, tightly adheres to the cut position of the cable's outer shielding layer.
3. Stress controlled heat-shrink tubes are suitable for medium and high voltage cross-linked power cable terminations and joints, improving the operational reliability of cable accessories.

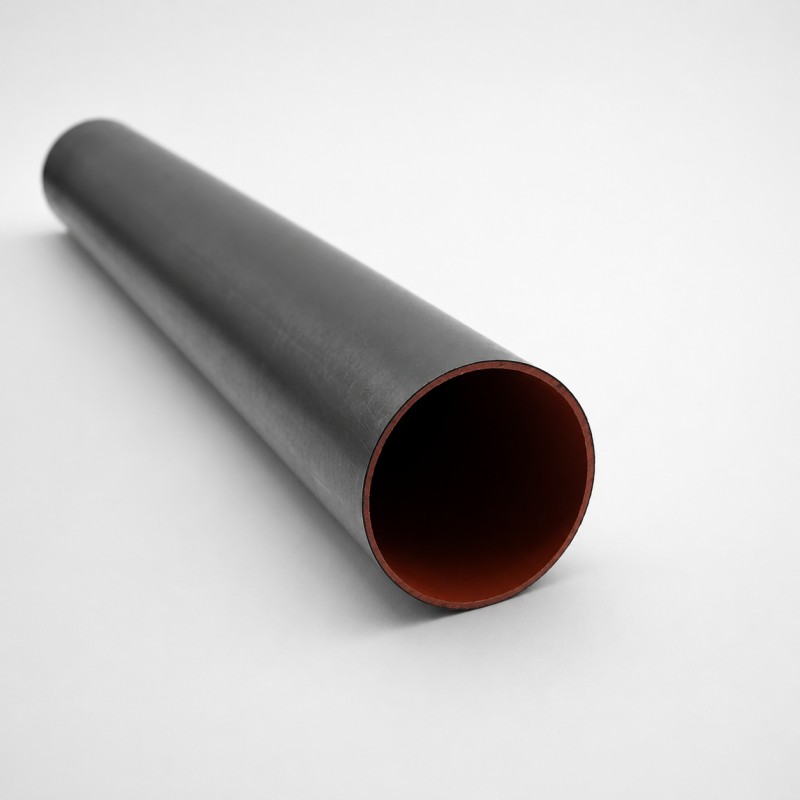

1.​‍​‌‍​‍‌ This product features a dual-layered heat-shrink structure with a semiconductive outside layer and an insulating interior layer that, apart from providing shielding for the electric field, also protects high-insulation very efficiently.
2. The cable joint medium-voltage semiconductive insulating tube heat-shrink that we produce is ideal for use in cable joints at voltage levels that are between 11kV, 24kV and 36kV.
3. The item is a great blend of insulation and electrical shielding properties that significantly enhance operational safety and reliability of cable ​‍​‌‍​‍‌joints.
