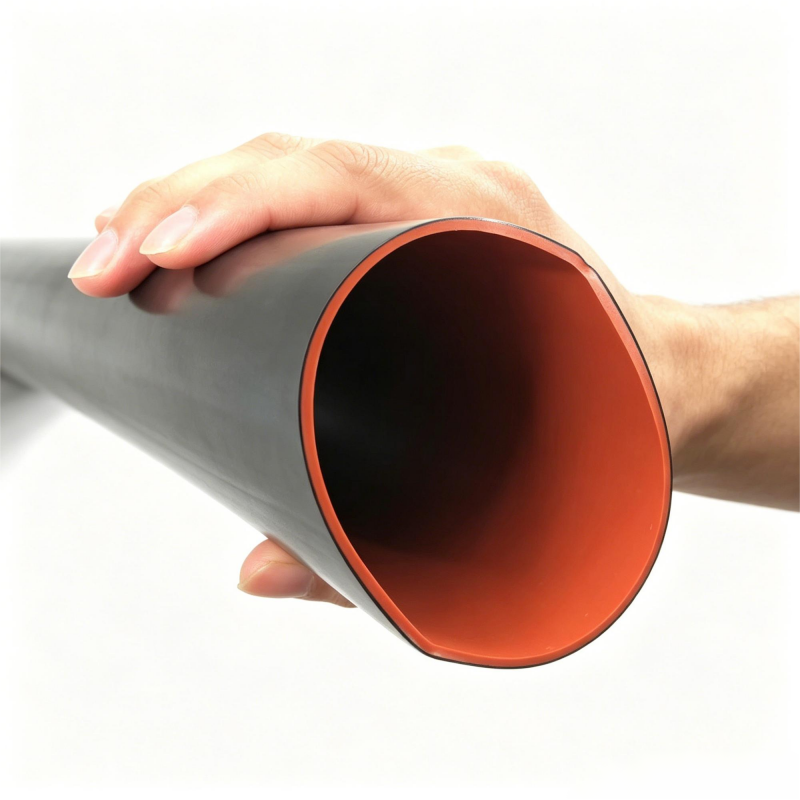

Heat Shrink Semi-conductive Insulation Tube
- CCMT
- CHANGCHUN,CHINA
- Based on the order quantity
- 5 million meters per month

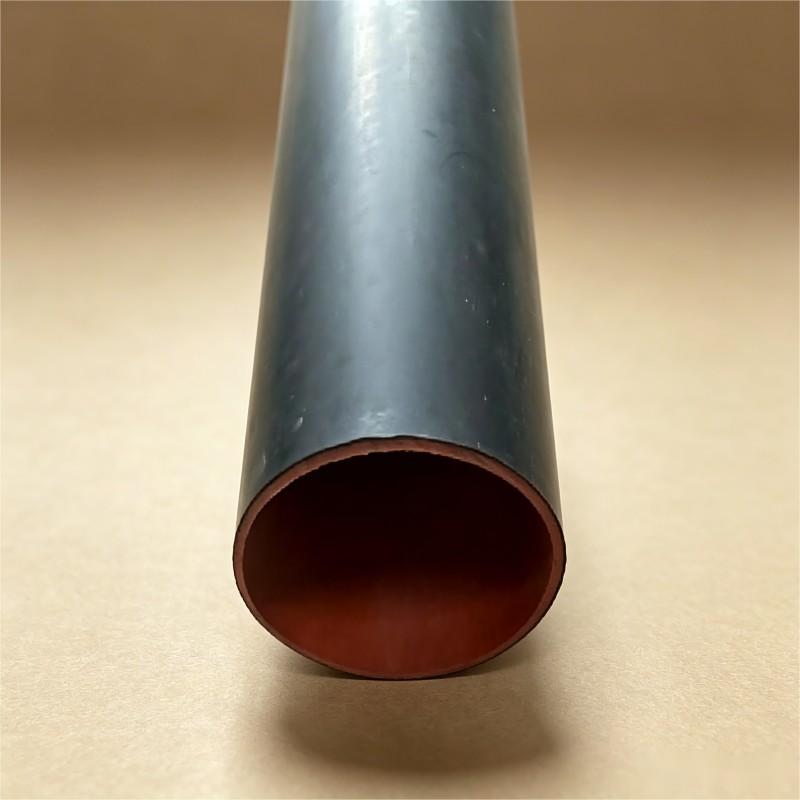

1. This product features a dual-layered heat-shrink structure with a semiconductive outside layer and an insulating interior layer that, apart from providing shielding for the electric field, also protects high-insulation very efficiently.
2. The cable joint medium-voltage semiconductive insulating tube heat-shrink that we produce is ideal for use in cable joints at voltage levels that are between 11kV, 24kV and 36kV.
3. The item is a great blend of insulation and electrical shielding properties that significantly enhance operational safety and reliability of cable joints.
The problem in medium-voltage cable systems happens when the intermediate joints are without a proper electrical stress control. Such a condition can make the cable suffer electric field concentration, partial discharge, and insulation aging. A long period of operating under such circumstances may eventually result in the failure of a joint, an increase in maintenance cost, and possibly even compromise the safe and stable power system operation as a whole.
Our Heat Shrink Semi-Conductive Insulation Tube Provides Reliable Insulation and Electrical Stress Control for Medium-Voltage Cable Joints.

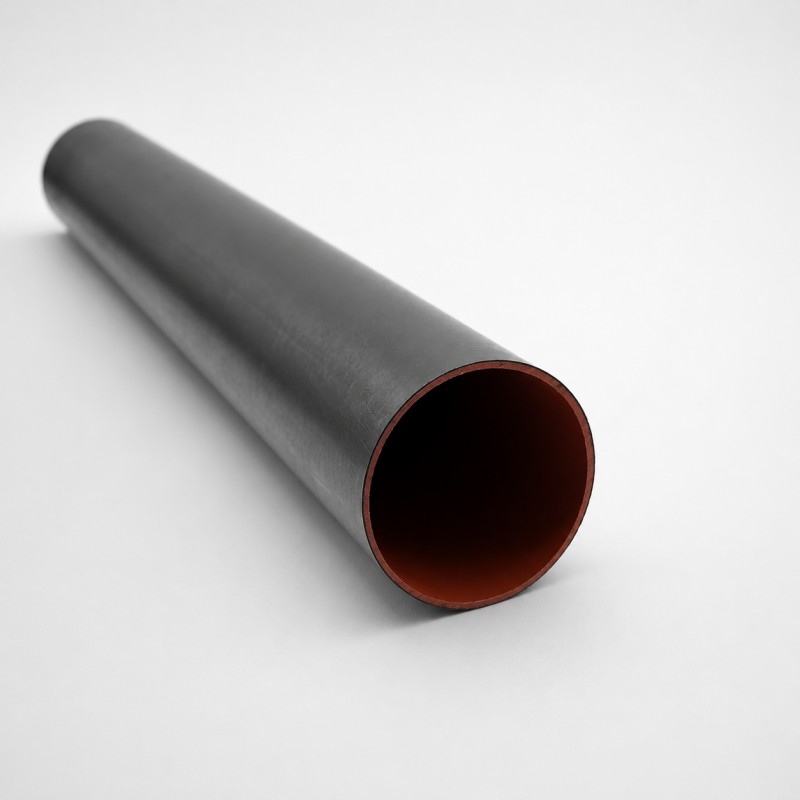

Semi conductive insulation sleeves are double-layer heat-shrinkable insulation sleeves primarily used for intermediate connections in medium-voltage power cables. They have a double-layer heat-shrinkable configuration, a semi-conductive outer layer and an insulating inner layer. The inner insulating material offers high-quality electrical insulation, while the outer semi-conductive material forms a shield for uniformly electric fields, and in doing so the insulation is protected and electrical stresses are controlled. This product is intended for medium-voltage cable intermediate joints of 42kV and below, and it ensures that cable connections are reliably insulated sealed and given electrical shielding protection.
Product Parameters:
| Product No. | Inner Diameter | After Reccovered Wall Thickness | Standard Length(mm) | |||
| Before Recover(min) | After Recover(max) | Total （ ± 0.3) | Redlayer ( ± 0.2) | Blacklayer ( ± 0.1) | ||
| 30/12 | 30 | 12 | 5.8 | 5.0 | 0.8 | 300-1000 |
| 35/13 | 35 | 13 | 5.8 | 5.0 | 0.8 | 300-1000 |
| 45/16 | 45 | 16 | 5.8 | 5.0 | 0.8 | 300-1000 |
| 50/16 | 50 | 16 | 5.8 | 5.0 | 0.8 | 300-1000 |
| 55/20 | 55 | 20 | 5.8 | 5.0 | 0.8 | 300-1000 |
| 60/20 | 60 | 20 | 5.8 | 5.0 | 0.8 | 300-1000 |
| 65/26 | 65 | 26 | 5.8 | 5.0 | 0.8 | 300-1000 |
| 85/29 | 85 | 29 | 7.3 | 5.0 | 0.8 | 300-1000 |
| 90/29 | 90 | 29 | 7.3 | 6.5 | 0.8 | 300-1000 |
| 100/37 | 100 | 37 | 7.3 | 6.5 | 0.8 | 300-1000 |
| 120/45 | 120 | 45 | 7.3 | 6.5 | 0.8 | 300-1000 |
Advantages of Semi Conductive Insulation Heat Shrink Tubes:

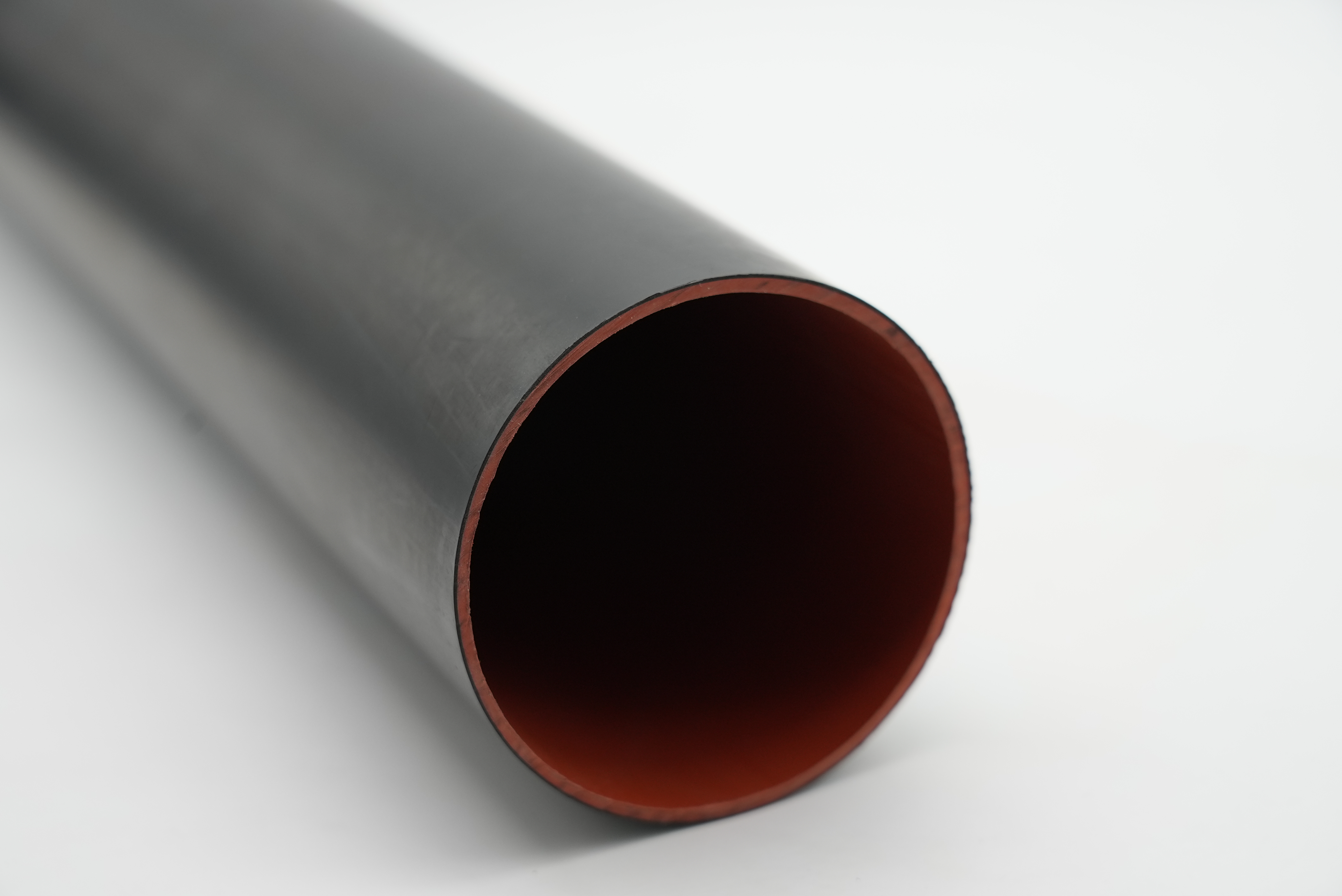

1. Double-layer structure for dual protection: insulation and electrical shielding.
These special semi-conducting insulating jackets are constructed using the double-layer composite type. The outer layer is semi-conductive and inner layer is insulating. This construction delivers very good electrical insulation together with uniform electric field distribution and reliable electric shielding thereby greatly enhancing the safety of medium-voltage cable joints during operation.
2. Excellent electrical stress control.
The semi-conductive outer layer serves the role of uniformizing the electric field, alleviating localized electrical stress concentration, and greatly diminishing the chance of partial discharge. This in turn enhances the electrical reliability of the cables and prolongs their life cycle in service.
3. Suitable for medium-voltage cable systems of 42kV and below.
Semi conductive insulation heat shrinkable tubes serve as ideal solutions for intermediate connections of medium-voltage power cables, for example 11kV, 24kV, 36kV. With proper design, these products are well capable of coping with working voltages up to 42kV. These products are now extensively used in power transmission and distribution networks, substations, and industrial cable accessories.
4. Convenient heat-shrink installation, forming a reliable insulation layer.
Polyester or semi-conductive heat shrinkability tubings start to contract at about 90℃ and reach their full size reduction when heated to 130℃. The result is very fast and efficient work in the field installation. The tubeling after thermal shrinking will fit the cable joint very tightly, thereby creating a stable and protective insulation & shielding layer which in fact enhances the performance reliability of the joint over the years.
Applications of Semi Conductive Heat Shrinkable Tubes:
Semi-conductive heat-shrinkable tubes are most commonly applied for medium voltage (MV) cable terminations and joints. The tubes may be utilized for splices and terminations at 42kV cables and below, offering not only insulation, but also electric field homogenization and electric shielding to cable joints.
This product can be widely used in many areas of power supply system including power transmission and distribution, substation, switchgear, power equipment production, industrial power distribution systems, railway transportation, wind and solar power, and other emerging sources of energy. The cable joints' performance can be reliably enhanced for many years using this product, so medium-voltage power system safety and durability requirements can be strictly met.
Why Choose Us?
We were established originally as a power cable accessories company in 1986, and through more than 40 years of technological progress, we’ve kept enhancing our production system as well as manufacturing capabilities. Right now there are roughly one factory area of 10,000 m2 at least, around 200-300 staff, and over 40 production machines among specialists, making up a comprehensive manufacturing platform covering main technologies such as extrusion, molding, injection Molding and expansion.

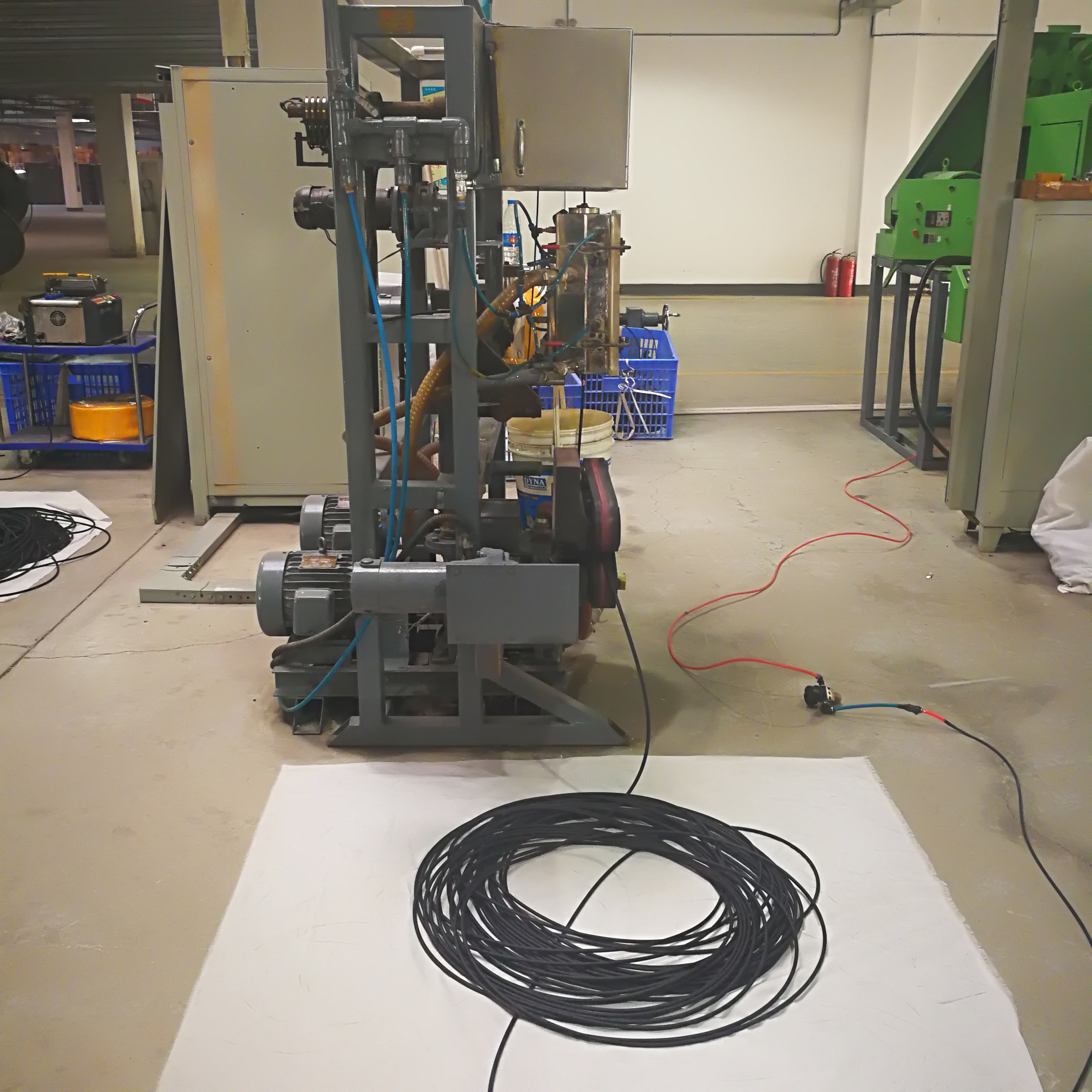

Monthly, we are capable of producing 5 million meters from our heat shrink tubes. Our production of heat shrinkable product comprises numerous production lines with 13 plastic extruders, 10 oil expansion machines, and 5 air expansion machines. Thus, we can manage large orders, customized projects, and delivery needs with the urgency.
We keep enhancing our product line with the best-in-class solutions and are currently supplying a complete range of cable accessories such as hot shrink, cold shrink, and junction boxes which can be used in power systems up to 220kV. Every item from our factory is made while following strict procedures of quality management with the result that we have been awarded the ISO 9001 and CE certificates. Besides these, our products are also environment-friendly and we strictly adhere to RoHS, REACH, and other regulations with respect to environment. As an extra reassurance, our products have been successfully subjected to SGS material safety testing and therefore they are suitable for procurement and use in different countries and regions. (ISO Certification No. 00123Q36311R5M/2200)
Serving Internationally Renowned Companies.
Our products have been exported to numerous countries and regions and are widely used in power systems, communication infrastructure, and related industrial projects. For many years, we have continuously provided cable accessory solutions to international companies such as ABB, CANUSA, and SHELL, including supplying ultra-thick three-layer co-extruded composite pipes for RAYCHEM and custom-made special insulating tapes for 3M. These collaborative projects fully demonstrate our comprehensive strength in material research and development, product manufacturing, and quality control.
Expanding into International Markets.
As part of our commitment to overseas customers, we have been consistently engaged in international industry events and market promotion. At Hannover Messe 2023, we were represented at the exhibition booth where a range of insulation protection solutions for the new energy, power and rail transportation was presented to over 4,000 exhibitors and to more than 130,000 professional visitors world-wide.
FAQ:
1. What performance characteristics of cable joints can semi conductive heat shrink tubes improve?
Such a tool helps to optimize the electric field distribution at the connection, eliminate spots with extremely high stress, and increase the safety factor. At the same time, the use of such a product makes the cable system more reliable and less susceptible to the effects of the environment.
2. Is the semi conductive heat shrink tube easy to install?
The product is installed via heat shrinking. After heating, it fits tightly against the surface of the cable joint, making installation simple and quick, and forming a long-term stable insulating shielding layer.
