Heat Shrink Right Angle/In-line Bushing Boot
- CCMT
- CHANGCHUN,CHINA
- Based on the order quantity
- 20,000 per month
1. Heatshrink bushing boot kits are in right-angle and straight-through designs to provide protection for different cable outgoing directions.
2. The inner walls of both ends of the heat shrinkable right angle boot are coated with hot melt sealant, which fits the cable and equipment connection areas after heating and shrinking.
3. The straight boot heat shrink cable right angle is made of polyolefin material, which has trace resistance, ultraviolet resistance, insulation and thermal stability properties.
Not all cables in power equipment adopt straight outgoing wires. In switchboards, transformers and other power distribution equipment, cables may be connected from the side, bottom, or specific angles. If ordinary straight-tube heat shrink sleeves are used directly, problems such as insufficient coverage, uneven shrinkage, or limited installation space may occur in the corner areas.
In response to the above problems, CCMT's heatshrink bushing boot kits adopt a preformed structure, and a straight-through type or right-angle type product can be selected according to different outgoing directions. At the same time, the inner walls of both ends are coated with hot melt adhesive, which forms a closer fitting and sealing structure after heating and shrinking. Compared with the complex processing performed on site through ordinary heat shrink tubing, the molded sheath can reduce structural adjustments during the installation process and improve the consistency of installation of different batches of products.
Product Introduction:

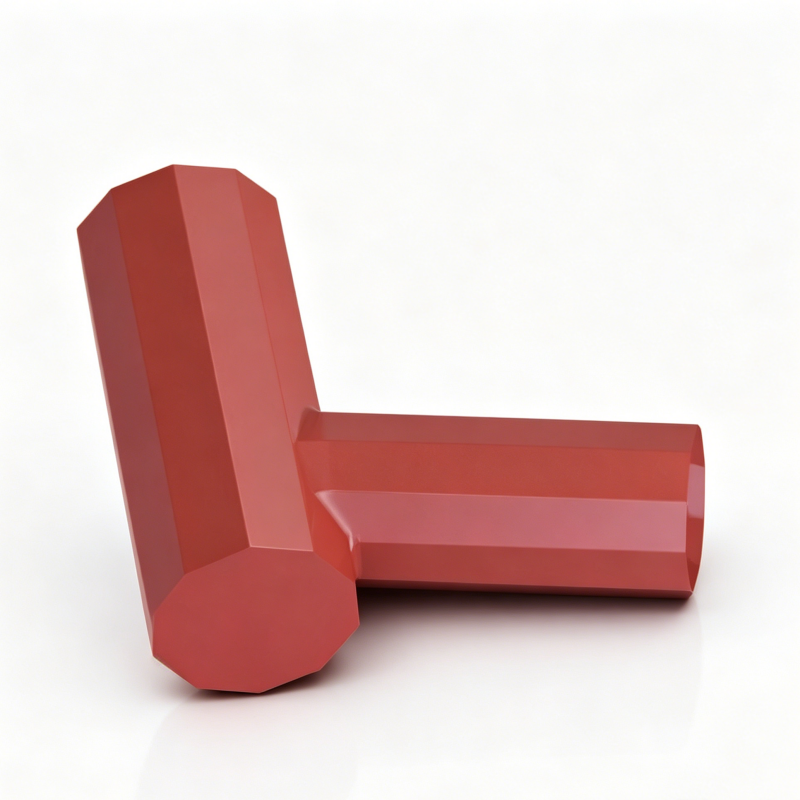

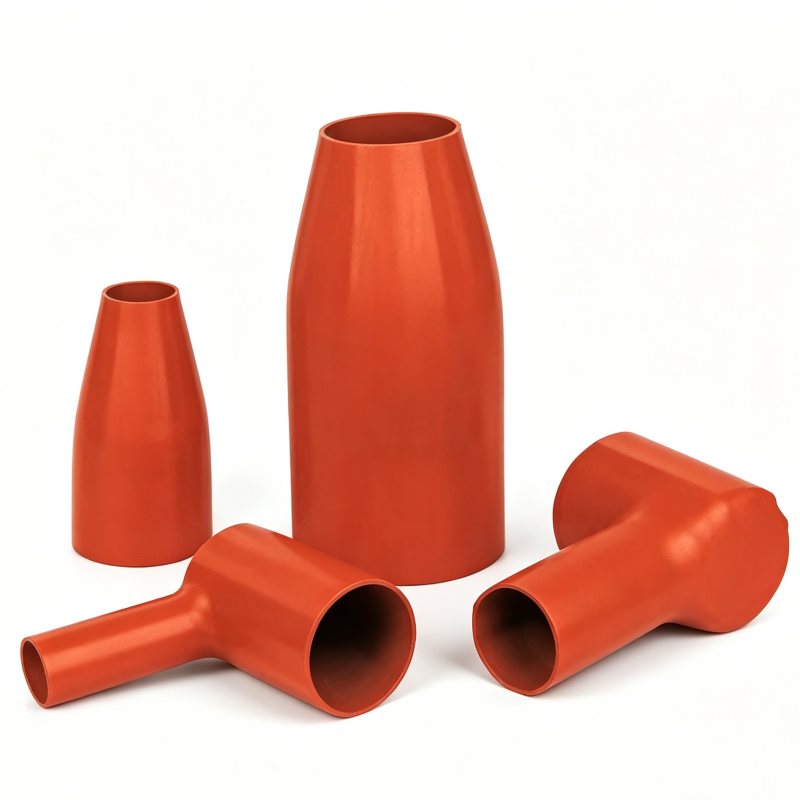

The straight boot heat shrink cable right angle is made of polyolefin material and is a preformed heat shrinkable insulation protection part. The product is available in right-angle and straight-through structures. The inner walls of both ends are coated with hot melt sealant. After heating, it can be closely attached to the cable and equipment connection areas. It is used in cable connection parts in switchgear, transformers and other power equipment, providing additional insulation, sealing and environmental protection.
Product Performance Parameters:
| Item | Test Method | Parameter / Standard Value |
| Material | — | Polyolefin |
| Structure | — | Right-angle / Straight |
| Shrinkage Ratio | — | 2:1 - 3:1 |
| Minimum Full Recovery Temperature | — | 130 °C |
| Internal Structure | — | Hot-melt Adhesive Coating on Inner Walls at Both Ends |
| Standard Color | — | Red |
| Customization Service | — | Custom Colors Available Upon Request |
| Tracking Resistance | — | Yes |
| UV Resistance | — | Yes |
| Storage Temperature | — | -10 °C to 40 °C |
| Storage Humidity | — | Relative Humidity Below 75% |
| Shelf Life | — | Over 5 Years (Under Specified Storage Conditions) |
| Tensile Strength | ASTM D638 | ≥10 MPa |
| Elongation at Break | ASTM D638 | ≥300% |
| Change in Tensile Strength after Heat Aging (130 °C × 168h) | ASTM D5510 | ≤ ±20% |
| Change in Elongation at Break after Heat Aging (130 °C × 168h) | ASTM D5510 | ≤ ±15% |
| Volume Resistivity | IEC 60093 | ≥1 × 1014 Ω·cm |
| Dielectric Strength | IEC 60243 | ≥25 kV/mm |
Specific thermal aging indicators shall be subject to the CCMT final test report or technical specifications.

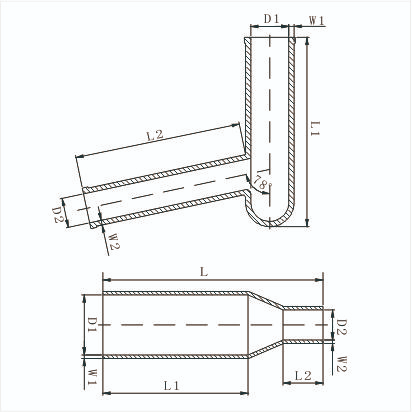

Product Specifications:
| Spec. | As Supplied/mm | After Recovered/mm | W1 (±10%) | W2 (±10%) | ||
| D1 Min | D2 Min | D1 Max | D2 Max | |||
| Right Angle Boot | ||||||
| R1 | 80 | 35 | 36 | 19 | 5.6 | 5.0 |
| R2 | 80 | 50 | 36 | 19 | 5.6 | 5.0 |
| R3 | 80 | 50 | 36 | 28 | 5.6 | 5.0 |
| R4 | 95 | 70 | 36 | 28 | 5.6 | 5.0 |
| R5 | 145 | 70 | 72 | 34 | 5.6 | 5.0 |
| In-line Bushing Boot | ||||||
| S1 | 80 | 34 | 32 | 19 | 3.6 | 3.6 |
| S2 | 80 | 58 | 32 | 19 | 3.6 | 3.6 |
| S3 | 140 | 90 | 68 | 34 | 3.6 | 3.6 |
During actual type selection, it is recommended to simultaneously confirm the outer diameter of the cable, equipment interface size, outgoing direction and the size range of the sheath after shrinkage. The model cannot be selected based on the product name alone.
Product Advantages:
1. Pre-formed structure to adapt to different cable outgoing directions.
Right-angle and straight-through structures correspond to different equipment connection forms respectively. For equipment with lateral, bottom or right-angle outgoing lines, the corresponding structure can be directly selected to reduce the problem that ordinary heat shrink tubing needs to be cut, adjusted or repeatedly heated in the corner area. And pre-formed structures are also more suitable for standardized assembly and mass production.
2. Hot melt adhesive design at both ends strengthens the sealing of the connection area.
The inner walls at both ends of the heat shrinkable right angle boot are pre-coated with hot melt sealant. During the heating process, the sheath shrinks, and the hot melt adhesive softens simultaneously and adheres to the connection surface, filling part of the gap between the cable and the equipment interface. This structure not only provides insulation protection, but also further strengthens the blocking ability of the connection area to external factors such as moisture and dust.
3. Polyolefin materials combine electrical insulation and environmental protection.
Anti-track heatshrinkable bushing boots are made of polyolefin materials with volume resistivity ≥1×10 ‰ Ω·cm, dielectric strength ≥25 kV/mm, and have trace resistance and ultraviolet resistance. For power equipment connection areas that require long-term insulation protection, the purchaser can further confirm the applicable specifications based on the actual voltage level, installation environment and equipment structure.
4. Shrink range 2:1 - 3:1 for easy specification matching.
The cable size and connection interfaces of different equipment are not completely consistent. Anti-track heatshrinkable bushing boots have shrinkage ratios between 2:1 and 3:1 and thus compensate for changes in size across sizes. CCMT also supports customization of color, size and product specifications, and can match products according to the equipment manufacturer's structural size and batch purchase requirements.
Product Usage Scenarios:
· Cable outgoing for switch cabinets and distribution equipment
It is suitable for cable connection, lateral outgoing and bottom outgoing areas inside the switchgear, especially suitable for structures with compact equipment space.
· Transformer and equipment connection area
It can be used in cable connection parts in transformers and related power equipment to provide insulation and sealing protection for exposed or connection areas that require additional protection.
· Mass manufacturing of power equipment
For switchgear manufacturers, transformer companies, power system integrators and cable accessory dealers, right-angle or straight-through products can be configured according to different equipment structures to facilitate bulk procurement and standardized installation.

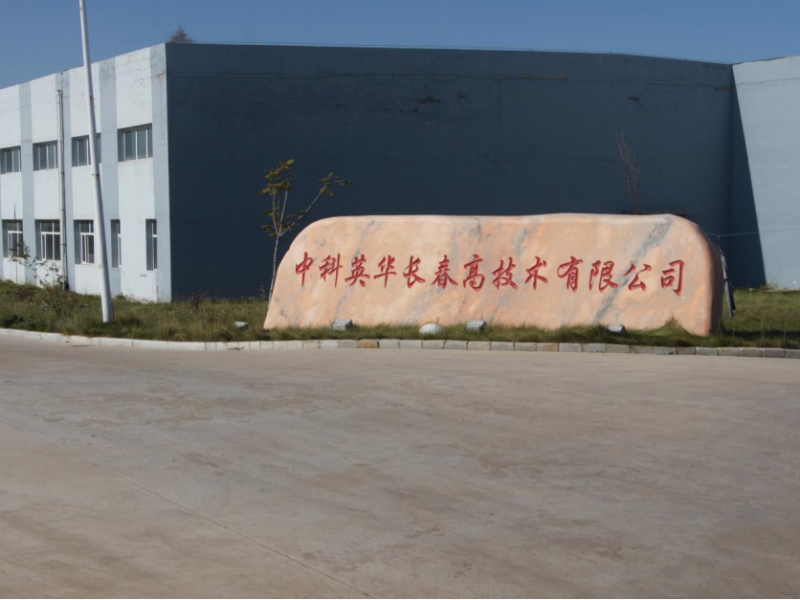

About CCMT:
CCMT was established in 1986 and has long focused on the research and development, production and supply of power and communication cable accessories. Its product system covers heat shrinkage, cold shrinkage, cable terminals, cable joints, sealing materials, waterproof materials and overhead line protection products. After 40 years of industry accumulation, the company continues to carry out research and development of polymer materials, heat shrinkage and cold shrinkage technology-related products, and has received support from technical resources such as Changchun Institute of Applied Chemistry.

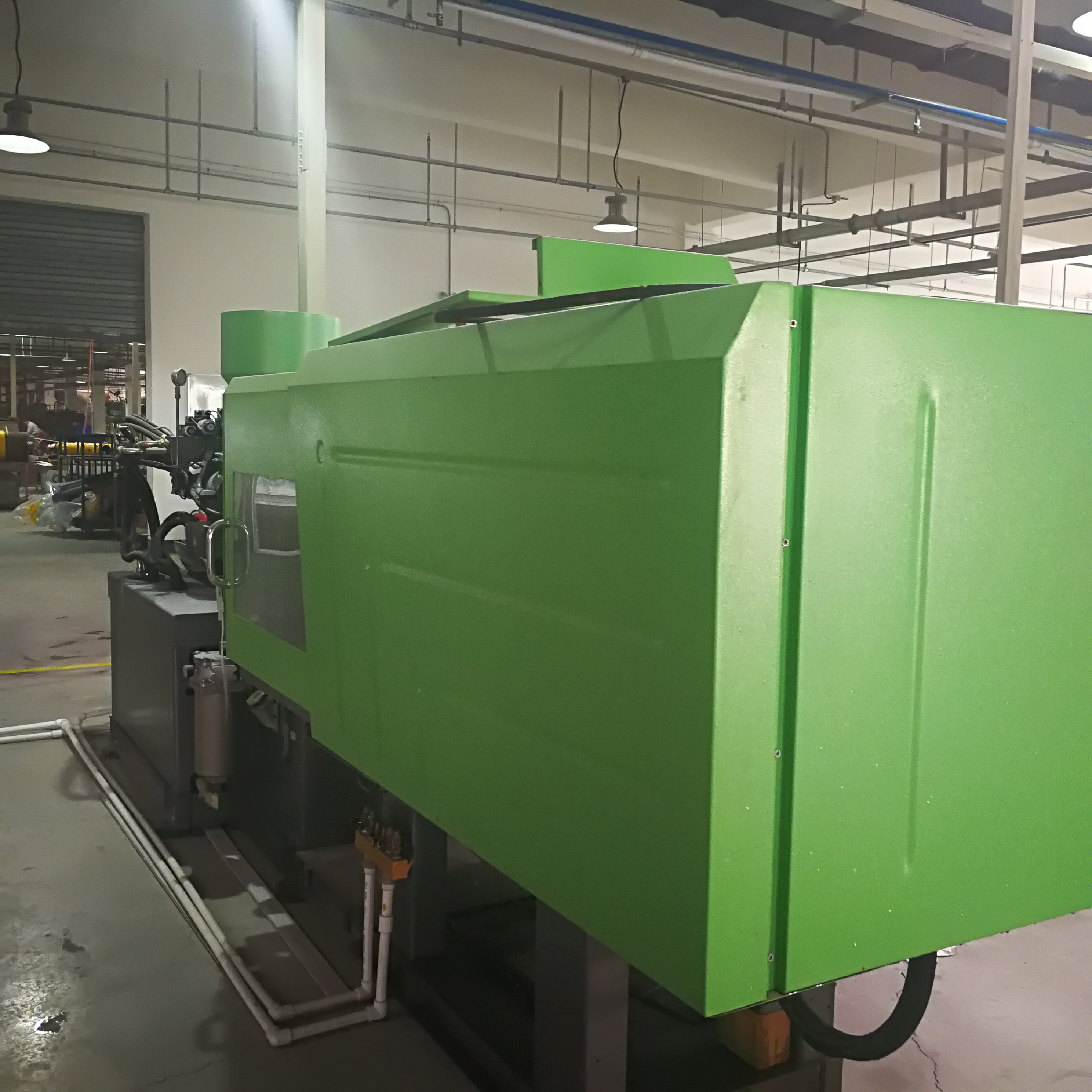

Our own manufacturing system supports stable batch supply.
CCMT has a production base of approximately 10,000 square meters and a professional production team of more than 100 people, and is equipped with more than 40 sets of professional production equipment. Our company has 13 plastic extrusion production lines, 10 oil expansion production lines and 3 silicone rubber extrusion production lines, forming a complete manufacturing system from raw material processing, product forming to finished product testing, and providing a manufacturing foundation for OEMs and batch orders.
Bulk supply capabilities.
Different CCMT products have different production capabilities. For example, the monthly production capacity of heat shrink tubing/sleeve can reach approximately 5 million meters, the monthly production capacity of cable end caps is approximately 30,000 pieces, and the monthly production capacity of heat shrink and cold shrink cable terminals/joints is approximately 10,000 sets. The production capacity of specific products will be adjusted according to specifications, order quantity and production schedule. The purchaser can confirm the delivery date and supply capacity of the corresponding model during the inquiry stage.
ISO quality management and product testing.
CCMT has established an ISO 9001:2015 quality management system (No. 00123Q36311R5M/2200) and conducts quality control of raw materials, production processes and finished products. The company's products meet relevant market requirements such as CE, RoHS, and REACH, and have some product type test reports issued by third-party testing agencies.
For cable accessory products, our company has the ability to test withstand voltage, partial discharge and related electrical properties, which can be used for product development, quality verification and batch inspection. For specific testing items of this product, corresponding technical data and testing documents can be provided according to the buyer's requirements.
International market and project experience.
After years of accumulation in overseas markets, CCMT products have been exported to Europe, the Middle East, Southeast Asia, South America and other international markets. In addition, we have participated in many large-scale industrial and energy projects and established cooperative relationships with international industrial customers. The company has supplied a large number of low-pressure heat shrink tubing to ABB, provided potting materials to Shell, and participated in the supply of products for domestic nuclear power and large-scale energy projects.
International exhibitions and industry exchanges.
CCMT continues to participate in professional exhibitions in the fields of power, electrical and industry at home and abroad. We have participated in the Shanghai International Electric Power Equipment and Technology Exhibition. Through face-to-face exchanges with equipment manufacturers, engineering contractors and overseas buyers, the company continues to understand the actual requirements for product size, installation methods, technical documents, packaging and customization services in different markets, and feed back these needs into the product development and supply system.
FAQ:
1. Can right-angle and straight-through sheaths replace each other?
Direct substitution is not recommended. If equipment space is limited or cables have obvious corners, using mismatched products may affect the fit and coverage after installation.
2. Does the internal hot melt glue cover the entire sheath?
Hot melt sealant is mainly coated on the inner walls of both ends of the sheath. This design focuses on strengthening the sealing protection of the interface area between the cable and the equipment, and avoiding the impact of completely filling the inside of the entire sheath with glue layer on the installation and shrinkage process.
3. Can it be disassembled or reused after shrinking?
Right angle heat shrink boots are a one-time installation product and are not recommended for disassembly or reuse.
