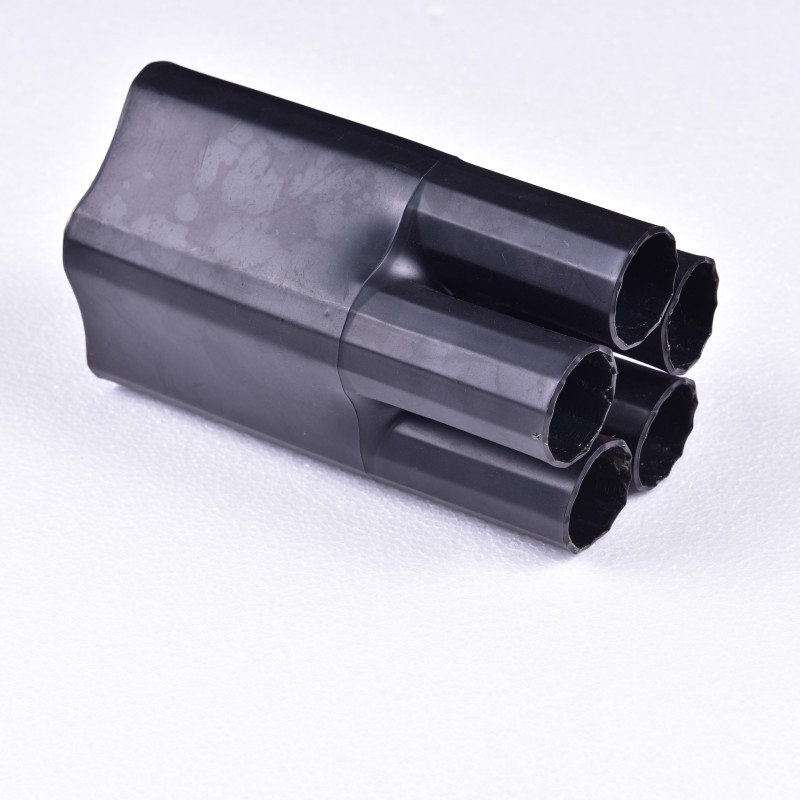

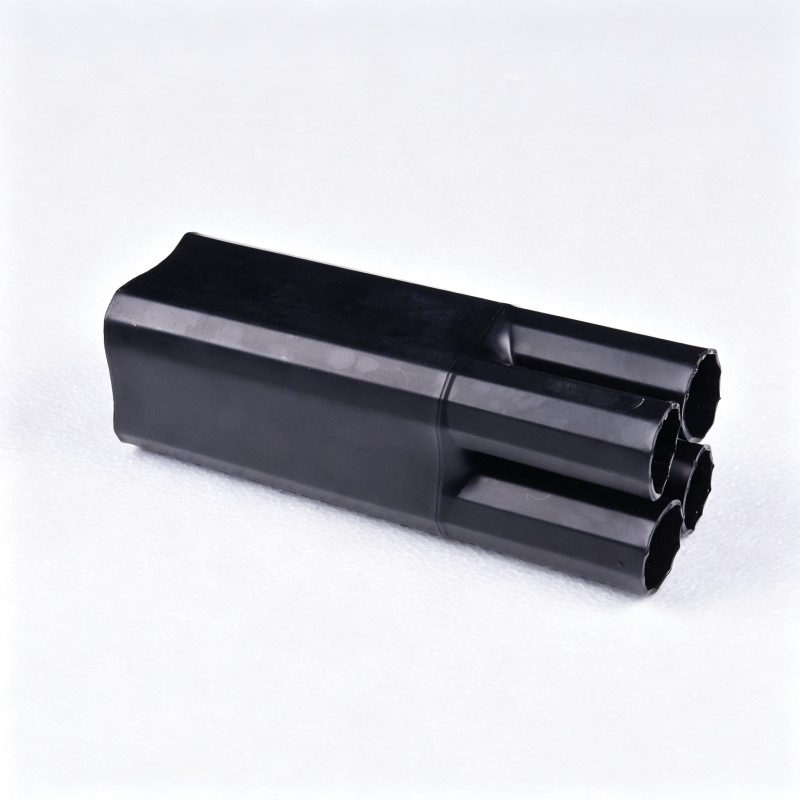

Heat Shrink Power Cable Boots
- CCMT
- CHANGCHUN,CHINA
- Based on the order quantity
- 20,000 per month
1. Our insulation boots for heat shrinking cables combine insulation, sealing, & conductive shielding in one product that reliably shields cable branches.
2. The breakout boots for cables of our products exhibit superior waterproof, corrosion-, abrasion-, & weather-resistance, hence the cables covered by the boots can be safely operated in harsh operational conditions.
3. Heat shrink insulation boots available from us range through various specifications of low to medium voltage & are recommended for use up to 42kV cable end applications.
Projects are often completed using different kinds of cables in terms of number of cores, cross-sectional area, branch configurations and so on. Poor cable sheath compatibility may have various negative outcomes such as loosening of wrapping, installation problems, or even sealing defects which will lead to complicated construction and could eventually affect the safety and reliability of system operations.
Solution:
Polyurethane Heat Shrink Insulation Boots, developed by BOSI, cover 2 to 5 cores and are suitable for cable branches of 4–400 mm² size. They can be used with terminations from cable up to 42kV. They are also very simple to use. After heating the product it shrinks uniformly and fits different cable branch parts well with a single motion. It also simultaneously insulation sealing and conductive shielding protection. These characteristics will help in saving the time on the installation, and in lowering cost caused by the specification mismatch through specification of construction and maintenance.

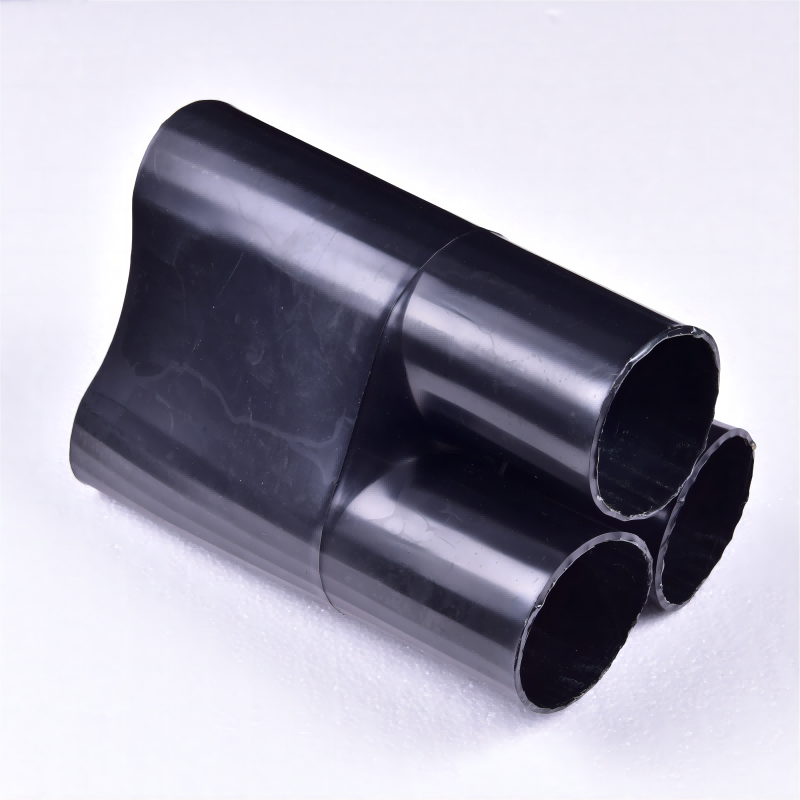

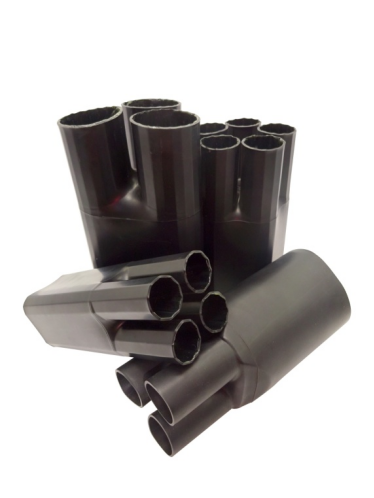

Introduction to Heat Shrink Cable Boots:
Such components are insulation and protection against thermal shrinkage, which are mostly fabricated from cross-linked polyolefins for cable unions and branches. By heating, these items get closely fitted onto the cables to give dependable insulation and weatherproof seal. A combination of shielding against electricity loss, waterproofing, moisture resistance, abrasion resistance, weather resistance, and corrosion resistance is provided by this item and it can be used for cable terminations up to 42 kV. This item is in heavy demand in the areas of electricity, vehicle industry, airplane construction, and other engineering.
Product Parameters:
| Core | CrossSection (mm²) | Main Daimeter | Finger Diameter | Recovered Length | Recovered Wall | ||||
| Supplied | Recovered | Supplied | Recovered | full | Finger | Main | Finger | ||
| 2 | 4-16 | 25 | 12 | 10 | 3.5 | 86 | 30 | 2.0 | 1.4 |
| 2 | 25-50 | 40 | 18 | 15 | 5.6 | 120 | 40 | 2.5 | 2.2 |
| 2 | 70-120 | 50 | 22 | 20 | 8.7 | 145 | 50 | 2.5 | 1.8 |
| 2 | 150-240 | 75 | 36 | 30 | 11 | 155 | 55 | 2.6 | 2.8 |
| 3 | 4-6 | 30 | 14 | 10 | 3.5 | 120 | 40 | 2.5 | 1.8 |
| 3 | 10-16 | 40 | 18 | 15 | 5.6 | 120 | 40 | 3.0 | 2.0 |
| 3 | 25-50 | 50 | 24 | 25 | 6.8 | 160 | 60 | 3.5 | 2.3 |
| 3 | 70-120 | 65 | 30 | 28 | 8.9 | 200 | 60 | 3.5 | 3.0 |
| 3 | 150-240 | 75 | 36 | 30 | 9 | 200 | 60 | 4.0 | 3.0 |
| 3 | 70-120 | 90 | 45 | 38 | 14 | 200 | 60 | 4.0 | 3.0 |
| 3 | 150-240 | 110 | 55 | 58 | 19 | 200 | 60 | 4.0 | 3.5 |
| 3 | 300-400 | 140 | 68 | 60 | 25 | 235 | 75 | 4.0 | 3.0 |
| 4 | 4-6 | 32 | 15 | 10 | 3.5 | 120 | 45 | 2.5 | 1.8 |
| 4 | 10-16 | 42 | 20 | 15 | 6.4 | 127 | 42 | 2.5 | 1.1 |
| 4 | 25-50 | 56 | 26 | 22 | 7 | 180 | 60 | 3.0 | 2.7 |
| 4 | 70-120 | 68 | 34 | 28 | 9 | 200 | 70 | 3.0 | 3.0 |
| 4 | 150-240 | 80 | 42 | 32 | 11 | 200 | 70 | 3.5 | 3.0 |
| 4 | 300-400 | 90 | 46 | 36 | 14 | 200 | 70 | 4.0 | 3.0 |
| 5 | 4-6 | 45 | 22 | 10 | 3.5 | 160 | 50 | 2.5 | 1.8 |
| 5 | 10-16 | 45 | 22 | 10 | 3.5 | 160 | 50 | 2.5 | 1.8 |
| 5 | 25-50 | 66 | 33 | 21 | 7 | 180 | 60 | 3.0 | 2.5 |
| 5 | 70-120 | 75 | 38 | 25 | 9 | 200 | 70 | 3.0 | 2.5 |
| 5 | 150-240 | 100 | 50 | 36 | 12 | 205 | 70 | 3.0 | 2.5 |
| 5 | 300-400 | 120 | 60 | 38 | 15 | 220 | 80 | 3.5 | 3.0 |

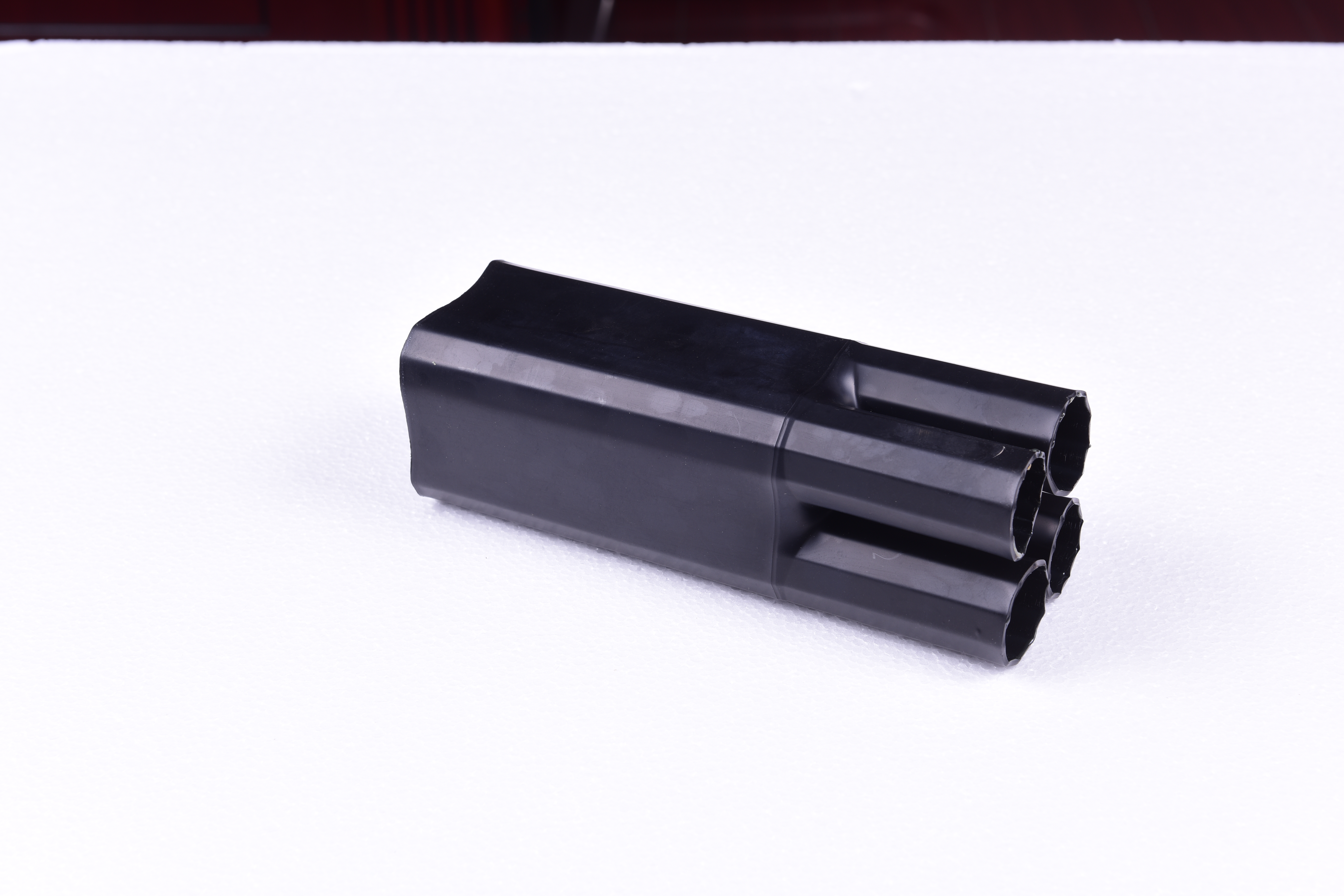

What Are the Advantages of Cable Breakout Boots?
1. Insulation Protection:
When heat shrink is used after the cable breakout boot, they firmly enclose the cable splitting joint thus, the resulting insulation layer of cable and breakout boot is continuous and reliable. Moreover, this will help to block the external electrical interference, prevent the leakage, short circuit and phase-to-phase discharge, and also guarantee the cable system operates safely and stably in the long run.
2. Environmental Resistance:
Manufactured from high-performance materials like cross-linked polyethylene, they feature remarkable waterproof, moisture-proof, UV-resistant, chemical corrosion-resistant, and aging-resistant characteristics. With the ability to resist external corrosion factors such as moisture, dust, and oil, they are very suitable for a power, railway, maritime, and outdoor work environment, prolong the lifespan of cables and fittings.
3. Secure Fit:
Cable breakout boots are specifically made for the application with cables ranging from 2 to 5-conductor cores. These kinds of boots after cooling have such thickness that it does not allow the material to have a wall thickness more than 4.0 mm. On being heated, they shrink so as to provide grip, holding and protecting the cables against the movements such as vibration, bending and stress that may cause damage. A thin protective layer of cable breakout boots effectively transfers mechanical stresses to the surrounding medium of support which results in no cracks, no loosening of a junction and thus a more reliable cable connection in the long run.
What Are the Applicable Scenarios for Heat Shrink Cable Breakout Boots?
· Power transmission and distribution: Used extensively around the globe to protect the electrical equipment from the insulation failure of 11kV–33kV cable terminations and splices, significantly enhancing the electrical insulation level and decreasing the risk of flashover and short circuit phenomena.
· Wind power and renewable energy: These cables can be connected to wind turbine units. The cables have great flexibility and are highly resistance to both high and low temperatures, and can be used reliably in long-term vibration and difficult outdoor environments.
· Photovoltaic power generation: Used for insulation protection of inverters and cable terminals, exhibiting good UV resistance, weather resistance, and insulation performance, meeting the requirements for long-term stable outdoor operation.
Why Choose CCMT?
Founded in 1986, we have long been focused on the R&D, production and manufacturing of cable accessories and insulation protection products, with nearly 40 years of industry experience. Our company has a modern production base of more than 10,000 square meters, with more than 200 employees and more than 40 professional production equipment. These include 5 molding machines and 3 injection molding machines for the production and manufacturing of heat shrinkable power cable sheaths. Relying on a complete production system, the monthly production capacity of heat shrink boots reaches 20,000 units (the output of different products varies), which can meet the large-volume purchasing needs of domestic and foreign customers.
Relying on the technical support of the Changchun Institute of Applied Chemistry, Chinese Academy of Sciences, our company has continuously improved its material research and development and product innovation capabilities, and established a complete quality management system. It has passed ISO 9001:2015 quality management system certification (No. 00123Q36311R5M/2200). At the same time, the products have obtained multiple international certifications such as CE, SGS, IEC, etc., and comply with environmental regulations such as RoHS and REACH, and can meet the market access standards of different countries and regions.
From raw material procurement to production and manufacturing, to finished products leaving the factory, we implement strict quality control processes. All products have passed third-party type testing and verification, and the independent quality inspection department implements full-process testing and provides corresponding inspection reports upon product delivery to ensure product performance is stable, quality is reliable, and meets relevant international standards and customer technical requirements.
Serving Many Countries and Regions Around the World.
With stable product quality, continuous production capacity and rich export experience, our cable accessories products have been exported to many countries and regions around the world, including Saudi Arabia, Turkey, the United Arab Emirates, Iran, India, the Philippines, Thailand, Indonesia, Malaysia, Brazil, Argentina and other markets. At the same time, our tape series products are also exported to many European countries and regions, providing continuous and stable product supply to global customers.
Continue to Expand International Markets.
In recent years, we have participated in many international exhibitions, including the Hannover Industrial Fair in Germany, the Dubai Electric Power and Energy Exhibition in the Middle East, and the Shanghai International Power Equipment and Technology Exhibition. On this platform, we have conducted in-depth exchanges with customers from many countries and regions around product certification, quality testing, sample testing and bulk purchasing, laying a good foundation for subsequent cooperation.
FAQ:
1.What voltage levels is the heat shrink cable breakout boot suitable for?
It is suitable for low-voltage to medium-voltage cable systems, and can be used for cable termination and branch protection up to 42kV.
2.What environmental protection properties does the heat shrink cable breakout boot have?
The product has excellent waterproof, moisture-proof, wear-resistant, weather-resistant and chemical corrosion resistance properties, and can adapt to complex working conditions.
