Silicone Self Fusion Insulation Tape
- CCMT
- CHANGCHUN,CHINA
- Based on the order quantity
- 20,000 meters per month
1. The silicone insulation tape does not need to have adhesive added as it adheres and bonds itself into a secure insulation seal.
2. The self adhesive electrical tape integrates electrical insulation, protection against weather, UV (ozone), and chemical resistance properties into a single product.
3. Withstanding a wide temperature range of -60°C to 220°C, long service life of our electric silicone insulation tape is ensured. The product can tolerate a sudden temperature change of up to 300°C.
In scenarios of assembling cable joints, wire harness connectors, and fixing electrical systems, regular PVC insulating tapes often run into problems like losing stickiness, the tape backing layers coming away from the surface, and finally, the seals failing, which is quite time-consuming since after that moisture together with灰尘, or any other foreign matter will be able to pass on into the connectors resulting in elevated Leakage Currents, frequent short circuits, and requirement for constant maintenance which altogether make it very hard for long-term insulation protection, in fact, this happens more with parts that are to be used at high temperatures, under the open sky, or industrial environments.
In an effort to solve the above problems and provide a long-lasting solution, we have developed self fusing insulation tape made of high-grade silicone rubber which has superior self bonding and self-adhesive properties. When you wrap the tape it forms an uninterrupted thickly sealed insulation protection layer and it is even unnecessary to use an additional adhesive. Moreover, it shows good electrical isolation, water proof sealing, protection from ozone and UV, and resistance to high and low temperatures, offering continuous stable and reliable insulation protection in harsh conditions with minimum wear and tear and thus effectively increases the service life of electric connections.
Product Introduction:

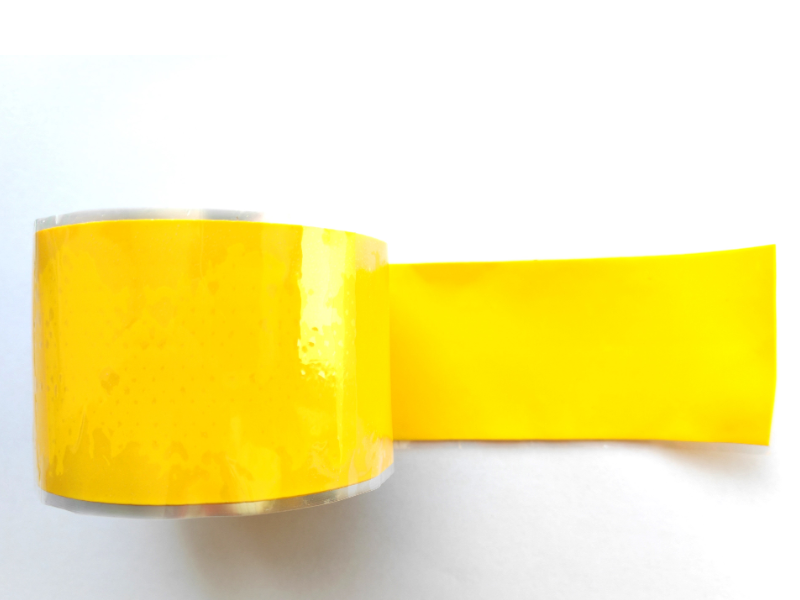

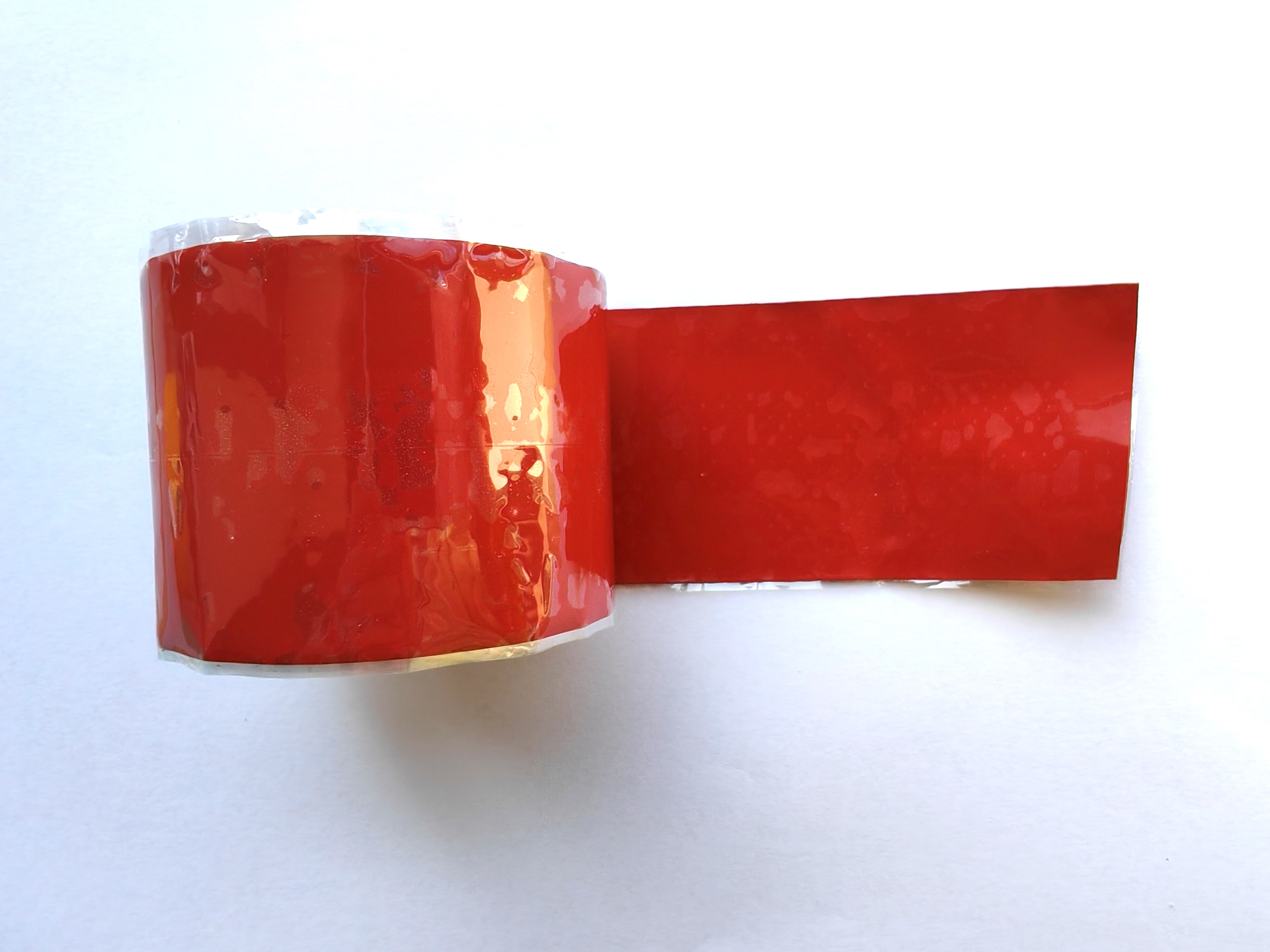

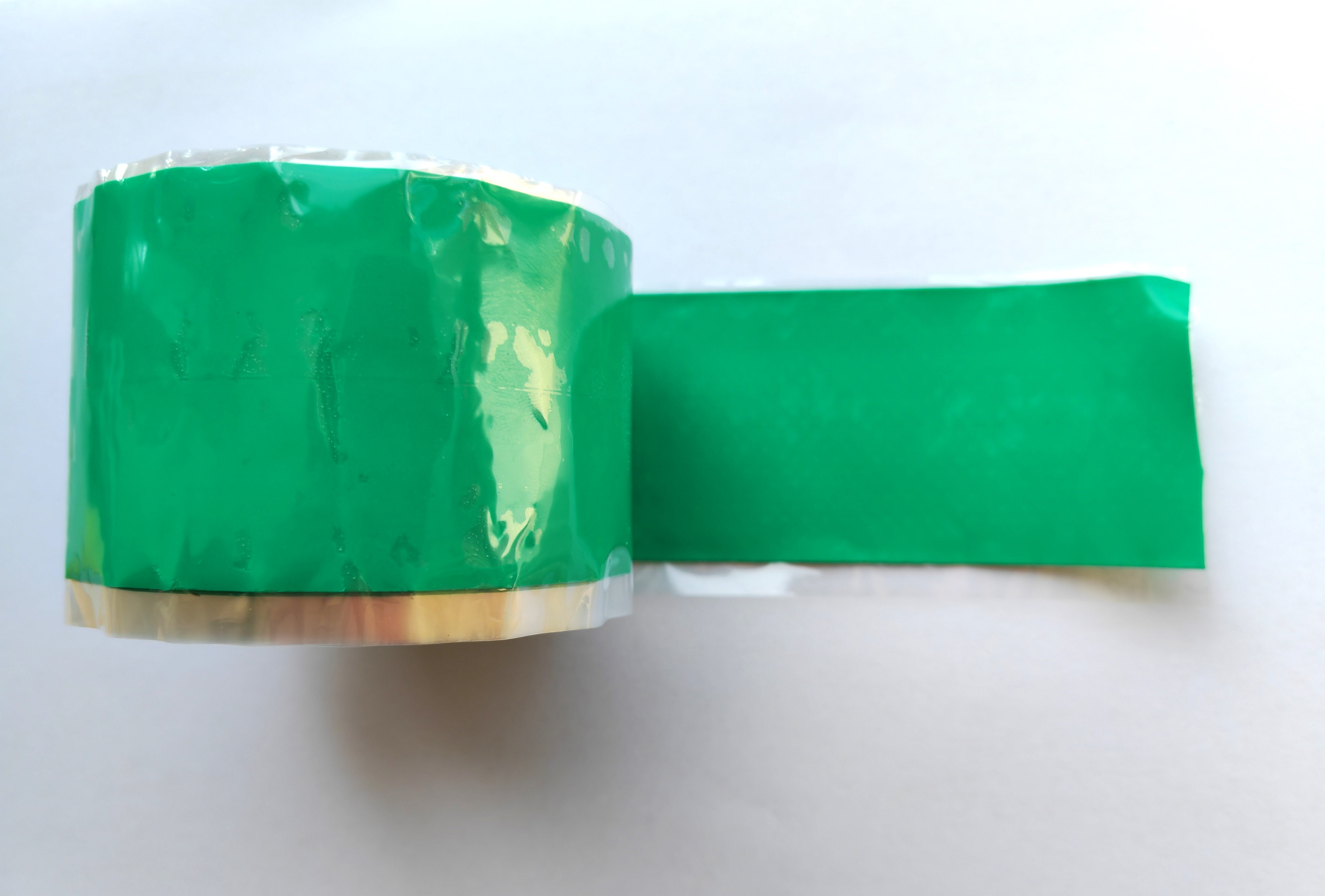

Self adhesive electrical tape is an efficient electric insulation material of excellent self-fusing and self-adhesive properties that is a result of high-quality silicone rubber and further improvements. After processing and wrapping, the tape results in a smooth and compact insulation layer without the use of adhesives. This product combines four features, namely electrical insulation, waterproof sealing, stress buffering, and aging resistance, which are all aimed at protecting cables, wires, and electrical contact points of moisture, dirt, and other environmental factors very effectively. The products find wide applications in different fields like industry power, electrical equipment maintenance work, household electrical repair, etc.
Product Performance Specifications:
| Property | Testing Methmod | Typical Data |
| Tensile Strength | ASTM D 638 | 3MPa |
| Elongation at Break | ASTM D 638 | 1000% |
| Dielectric Strength | IEC 243 | 25kV/mm |
| Volume Resistance | ASTM D 257 | 1.0x10¹⁵Ω·cm |
| Metal Corrosive | - | A Class |
| Cold Bend | - | No cracking |
Advantages of Electric Silicone Insulation Tape:
1. Excellent insulation performance, ensuring safe electrical operation.
Self fusing insulation tape possesses excellent electrical insulation properties, with a dielectric strength up to 25kV/mm and a volume resistivity up to 1.0×10¹⁵Ω·cm. It effectively isolates current, prevents leakage and short circuits, and provides reliable insulation protection for cable joints and electrical connections.
2. Weather resistance and chemical stability.
The product shows great ozone resistance, excellent resistance to oxidation and UV rays, besides being chemically stable. In other words, a product that resists moisture, corrosion and a harsh outdoor environment for a long time thus delays the aging of materials and prolongs the life of the electrical system.
3. Self-fusing and self-adhesive design for easier installation and maintenance.
Silicone insulation tape sticks only to itself and quickly forms a continuous and air-tight insulation layer. No extra adhesive is required to stick one strip to the other. It's not going to make a mess by leaving residue from adhesive. The result of that is construction becomes much easier and faster and even removing and repairing at the later stages of work turn out to be quite simple, thereby raising the efficiency of installation considerably.
4. Wide temperature range applicable, meeting the needs of harsh working conditions.
This product is stable and can be used for a long time in environments with temperatures varying from -60 to 220°C, while it can still resist a thermal shock of 300°C. Besides that, it reaches up to a 1000% stretch before breaking and has a bending of the material at low temperature with no cracks, so that it has flexibility and can adapt to surrounding changes very well in order to cope with the demands of complex conditions at the same time in power, industry, and outdoor fields over a long period.
Applications of Self Bonding Electrical Tape:
· Electrical equipment insulation protection: Used for F-class motors, transformers, power cable terminals, and cable joints.
· Industrial equipment electrical protection: It is used as an insulator, as protection and sealing of the electric connection against the damage in the areas of industrial automation, motors, pumps, control cabinets, and various mechanical equipment.
· Transportation by car and train: Can be used for car wiring, trains, and space transportation, offers insulation, waterproof sealing, and high/low temperature resistance for cable junctions.
· Building electrical installation engineering is the branch that deals with insulation and sealing of cables and wires which go through walls and ceilings of commercial, residential, and infrastructure constructions.
About CCMT:
Hailing from 1986, we are a company that has, for a long time, specialized in R&D and the production of cable accessories and insulation protection products. Over the nearly Forty Years we've been operating in the industry, our expertise has steadily grown.

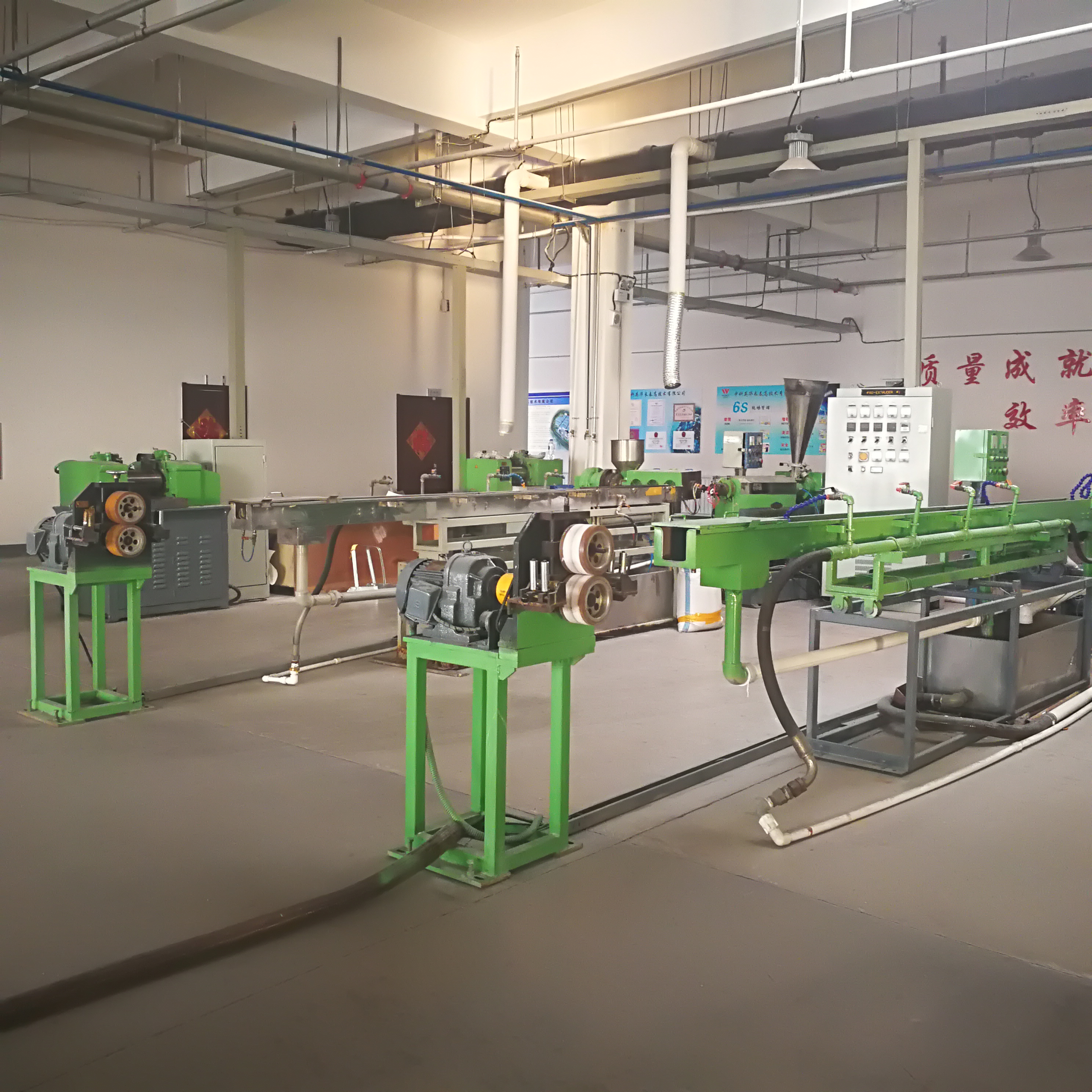

Our fully equipped production base spans 11,000 square meters with about 230 employees and 50 of the company`s workstations dedicated exclusively to product manufacturing, including three pieces of silicone extrusion machines designed primarily for making silicone-insulated tape. Based on a comprehensive production system, our silicone insulating tape production capability alone is over 2 million square meters a month!
R&D and Quality System:
We maintain technical cooperation with the Changchun Institute of Applied Chemistry, Chinese Academy of Sciences, continuously improving our material research and development and product innovation capabilities. We have established a comprehensive quality management system and have passed ISO 9001:2015 quality management system certification (No. 00123Q36311R5M/2200). Our products have obtained multiple international certifications such as CE, SGS, and IEC, and also comply with environmental regulations such as RoHS and REACH.
Global Cooperation Cases:
Our products are of good quality and stable. As a mature manufacturer, we offer cable accessories for export to a wide variety of countries and regions which include Saudi Arabia, Turkey, UAE, Iran, India, Philippines, Thailand, Indonesia, Malaysia, Brazil, and Argentina. In addition, our product range of tapes is exported to a variety of countries and regions in Europe.
Along with these, we offer long-term cooperation and services of internationally renowned enterprises. For instance, we have provided a few million meters of the extra-thick three-layer coextruded heat-shrinkable composite tubing to Raychemicals, and besides that, a few thousand meters of the OEM insulating tape specifically ordered by 3M. These cooperative works clearly show the extent to which our international customers recognize us for product qualities, manufacturing capacity, and efficiency of deliveries.
Exhibition Activities:
At the 2023 Hannover Messe, our series of cable accessory solutions covering power, new energy, and rail transportation successfully attracted widespread attention from professional buyers in Europe, the Middle East, and Southeast Asia. We not only won international clients' high recognition of the quality of Chinese manufacturing through our mature and reliable insulation, waterproofing, and anti-corrosion technologies, but also used this platform to gain a deeper understanding of the cutting-edge trends in global energy transition and smart manufacturing.
FAQ:
1. Is the installation of silicone insulation self adhesive tape complicated?
No additional tools are needed; the layers automatically fuse after stretching and wrapping, leaving no residue. Construction is quick and easy, and removal is also convenient.
2. Are there performance differences between products of different colors?
The colors are only for easy differentiation of phase sequence or application scenarios and do not affect the product's core performance indicators such as insulation, temperature resistance, and sealing.
