Heat Shrink Insulation Tape
- CCMT
- CHANGCHUN,CHINA
- Based on the order quantity
- 10,000 meters per month
1. Electrical heat shrink tape works by first applying to and then heating to cause shrinkage around cable or connector that it insulates electrically with one piece of tape.
2. The shrink wrap tape seals away moisture and at the same time physically hardens up to protect any kind of wire.
3. Cylindrical heat shrink wrapping tape is suitable for use with mains voltages ranging from 1kV to 36kV without any risk.
Over the years power system’s main parts undergo deterioration due to aging and external environmental impacts. In particular, conductors and contacts might be damaged by moisture, dust, and other factors causing loss of insulation, reduction of seal tightness, and increase of possibilities of leaks, short circuits, and equipment failures.
Existing protection solutions are not sufficient to address simultaneously the three main functions - insulation, sealing, mechanical protection - at an optimum level.
Solution:
The shrinkage of cable insulation tubing by heat shrinkage ensures excellent contact, which gives a uniform and stable covering that protects against any insulation breakdown. The cable heatshrinkable tape has very good insulation against moisture, sealing properties, and mechanical protection that prevents the intrusion of external moisture and contaminants; hence, it enhances the stability of the electrical system and meets the long-term safety protection requirements of 1kV to 36kV systems.
Product Introduction:

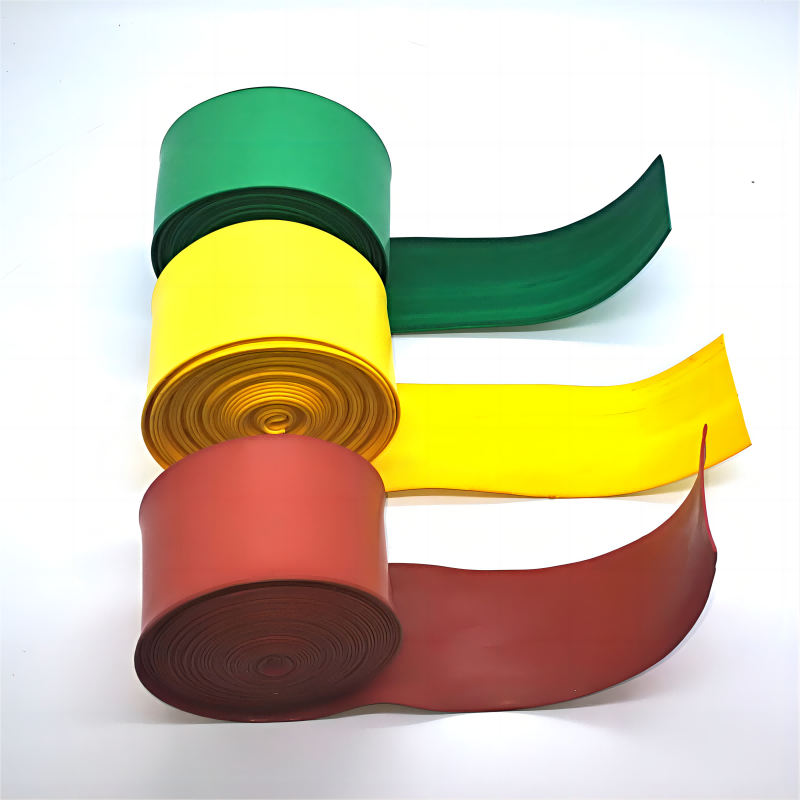

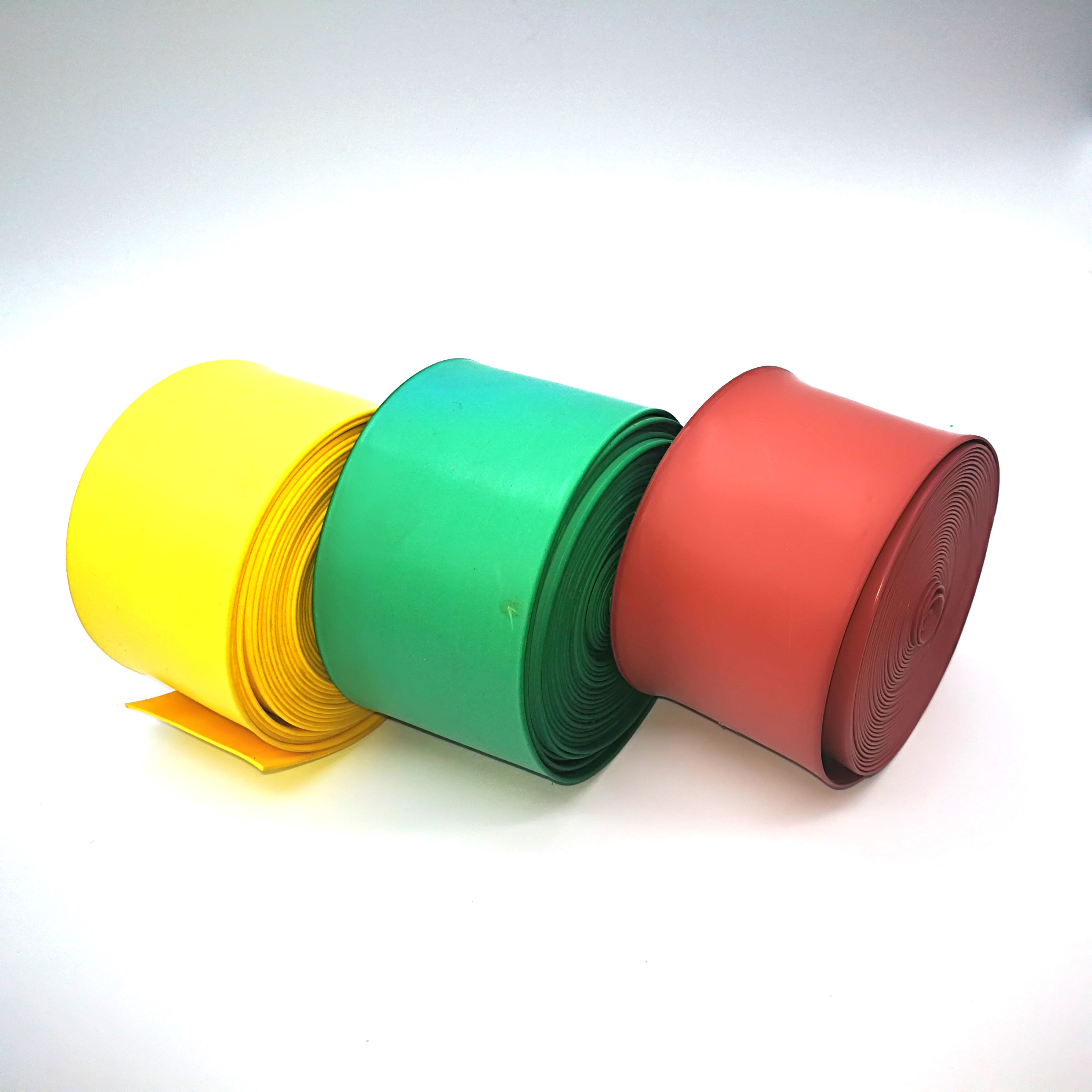

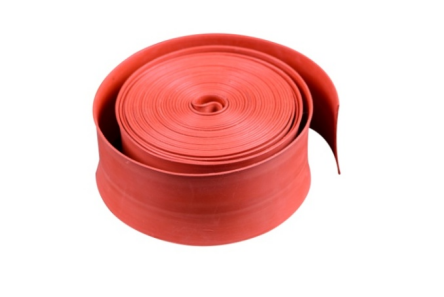

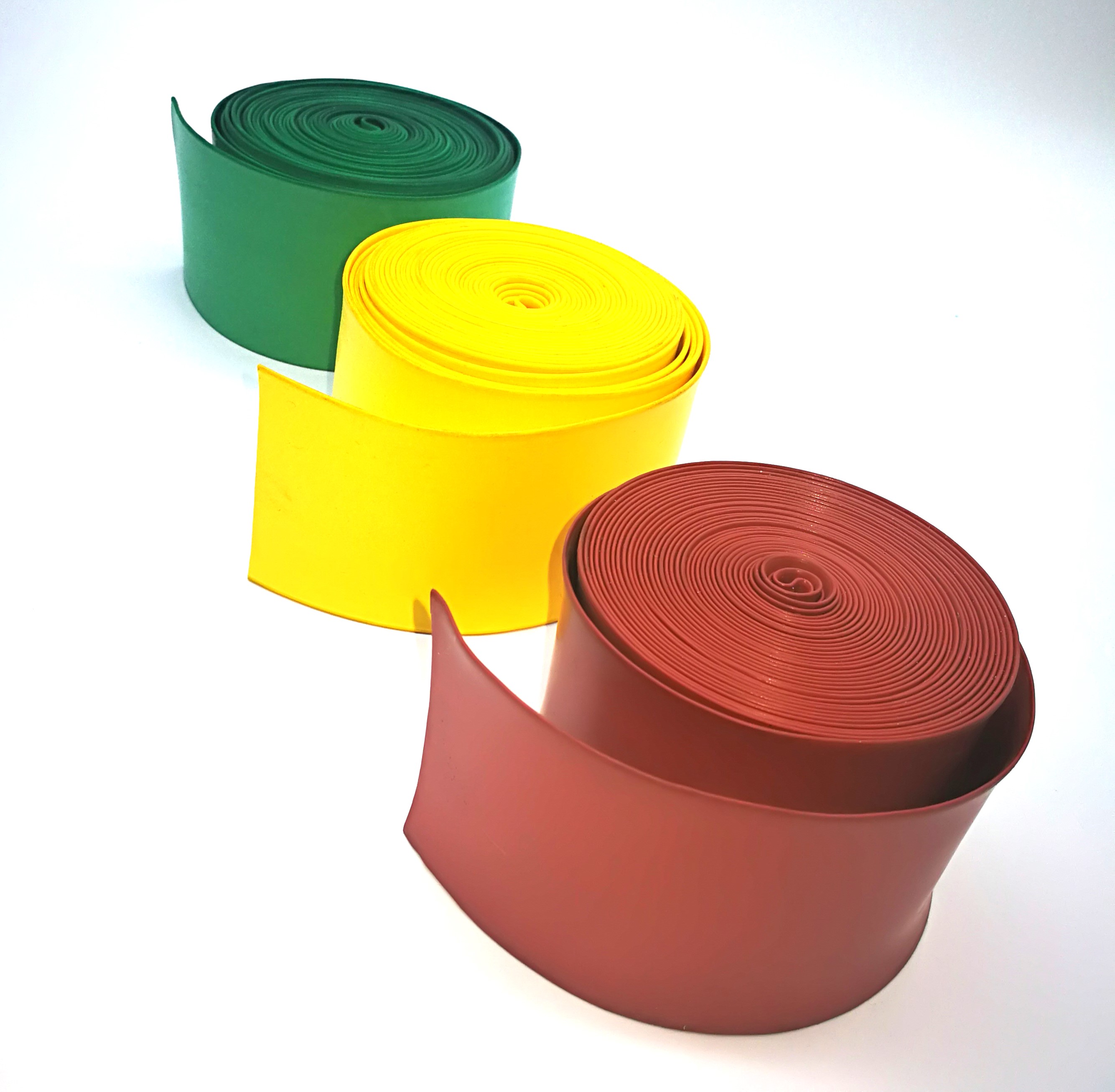

Electrical heat-shrinkable sealing tape, or heat-shrink wrap, is a type of sealing material specially developed for insulation that ensures a lasting protection from high-voltage electricity components. Once heat-shrunk, it snugly wraps around the cables, wires, and connectors that it is put on, creating an insulating continuous protective layer.
This kind of tape not only acts like a shield against electricity but also against water, and at the same time, it provides mechanical protection and resists any environmental damage. As a result, the use of electrical leakage, short circuits, and damage from outside the system is efficiently prevented. Such a tape is commonly used from 1kV up to 36kV voltage levels to power systems, in cable joints, and in electrical insulating protection in the industrial sector.
Product Parameters:
| Voltage(kV) | Thickness(mm) | Wideness(mm) | Length(m) |
| Under1.0 | 0.4 | 25,50 | 10,15,20 |
| 6.6-15 | 0.8-1.4 | 25,50 | 5,10,15 |
| 20-27 | 1.5-1.8 | 25,50 | 5,10,15 |
| 30-66 | 2.0-3.2 | 25,50 | 5,10,15 |
Product Performance Indicators:
| Properties | Date | Testing Method | |
Eletrical | Strength Breakdown kV/mm | 27-30 | GB1408 |
| A.C.Withstand Voltage kV/min | 42 | GB311 | |
| Lightning Impulse kV/ ± 10times | 75 | GB311 | |
| Thermal Stability Current kA | 31.5 | GB2706-89 | |
| Dynamic Stability Current kA,peak | 80 | GB2706-89 | |
| Volume Resistivity Ω.cm | 1.0×10⁴ | GB1044 | |
| Dielectric Constant | 2.5～3.5 | GB1409 | |
| Chemical | Oxygen Index | ≥28 | GB1409 |
| Water Absorption % | ≤0.1 | GB1046 | |
| Low Temperature Flexibility -55℃ ± 2℃4h | Pass | GB1034 | |
| Corrosin Test 23℃ ± 2℃moisture95%4h | Pass | ||
| Mechanical | Tensile Strength Mpa | ≥ 14.0 | GB1040 |
| Ulitmate Elongation % | ≥ 400 | GB1040 | |
| Woring Temperature ℃ | -55℃～105℃ | ||
| Accelerated Ageing Test 168℃,7day | Pass | GB1040 | |
Advantages of Wrap Around Heat Shrink Tape:
1. Insulation and Protection:
On heating, the product strongly sticks to the surface of electric components, forming a steady, insulating protective coat. Thus, the dielectric qualities are boosted dramatically without the possibility of any electrical fault through leakage.
2. Convenient Installation:
Mechanically we shrink the high temperature heat shrink tape with heat, and no elaborate instruments or tools are needed for this process. It can be used easily on various types of structures and in different places where joints are required.
3. Environmental Adaptability:
Electrical wraps made from electrical wrapping tape are highly resistant to moisture, have anti-tracking characteristics, and are aging resistant, so they can always provide stable protective performance in different indoor and outdoor environments.
4. Temperature Resistance:
Our high temperature heat shrink tape works in temperatures from -55℃ to 105℃. It is still highly reliable at such low and high temperatures.
Applications of Electrical Wrapping Tape:
This substance is mostly used in industrial electric systems as insulation and sealing material for electric connection points in engines, pumps, motor-driven devices, and transporting systems. In transport and automotive industries it is employed for providing insulation on vehicles' wiring harnesses and electrical connectors, and in aviation for insulating the electronic circuits. Thanks to its excellent resistance to heat, vibration and good adaptability to diverse environments, it offers a long-term reliable insulation and sealing protection of the circuits that run through vehicle, rail transport, and aerospace facilities that are considered very important.
About Us:
Sinced 1986, our company has had close to 40 years working in researching, developing, and manufacturing cable components and insulation protection goods. We have put together a whole manufacturing process from materials study, product design, manufacturing, and quality testing because of our extensive technology knowledge. Therefore, we keep sending to our clients around the world dependable and safe cable connection and insulation protection products every day.

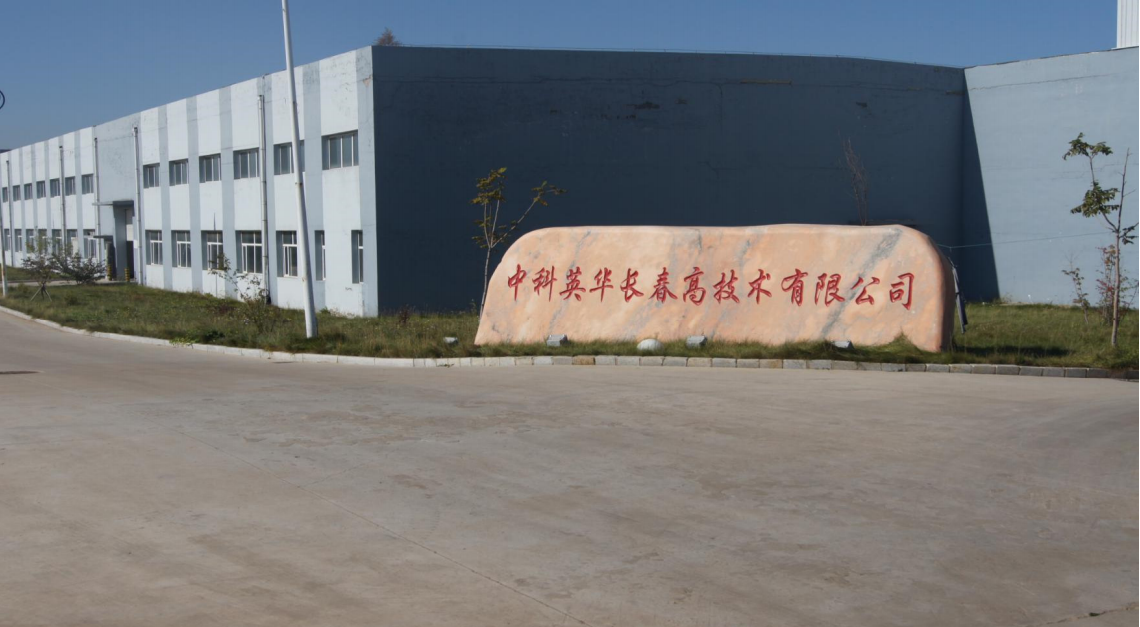

We are a progressive company with a large modern factory area of around 10,000 square meters, that has a team of over 200 professional employees and around 40 pieces of advanced production equipment. The factory is currently set with several specialized production lines, such as a group of 5 molding machines and 3 injection molding machines for the large-volume production of heat shrink sleeves. Depending on our complete production system and automated equipment, our monthly heat shrink sleeves production quantity is over 20,000 units.
Quality Certification:

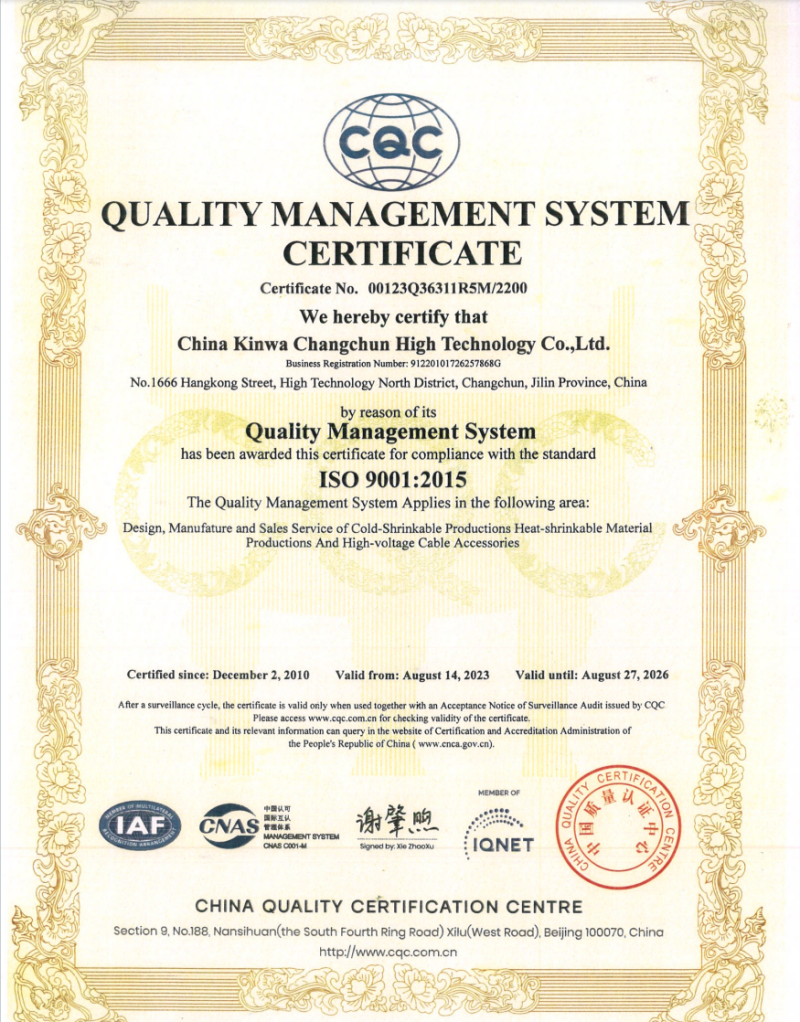

We have set up a complete quality control system and obtained the ISO 9001:2015 certification with certificate number 00123Q36311R5M/2200. We carry out strict quality control procedures starting from raw material procurement and production process control, and continuing up to the final product inspection stages. In addition, several of our products are certified on a global level by renowned certification bodies such as CE, SGS, and IEC standards, while others have been approved to environmental regulations like RoHS and REACH.
Customized Services:
We can customize services like changing the size of the product, improving the formulation of the materials, adjusting performance parameters, and packaging design. We support our customers through these customized services by relying mainly on our strong R&D capabilities and a production system with a great degree of flexibility and we are a professional OEM manufacturer too to serve different application areas in the customer industries.
Experience in Cooperation:
Our products have been exported to many countries and regions worldwide, covering markets in the Middle East, Southeast Asia, Europe, and South America. Furthermore, relying on reliable product quality and delivery capabilities, we have established long-term partnerships with several international companies:
·Providing tens of thousands of rolls of OEM customized insulating tape to 3M;
·Providing nearly one million meters of low-voltage heat shrink tubing to ABB;
·Providing tens of tons of potting compound to Shell.
These international cooperation cases fully demonstrate our comprehensive strength in product quality control, mass production capabilities, and international supply chain management.
Global Business Expansion:
From 2023 to 2025, our company participated in three international exhibitions:
· Hannover Messe, Germany;
· Dubai Electric Power Exhibition, Middle East;
· Shanghai International Power Equipment and Technology Exhibition.
Through participation in international professional exhibitions, the company conducted technical exchanges with customers from different countries and regions, and engaged in in-depth communication regarding product testing, certification requirements, and bulk supply solutions, further enhancing the brand's influence in the global market.
FAQ:
1. How to install electrical wrapping tape?
Installation is done using a heat-shrink method, requiring no complicated equipment. After heating, it tightly adheres to the surface of cables or connectors of different shapes, making installation convenient.
2. What protective functions does shrink tape for wires provide?
This product integrates electrical insulation, moisture-proof sealing, and mechanical protection, effectively preventing leakage, short circuits, moisture intrusion, and external mechanical damage.
