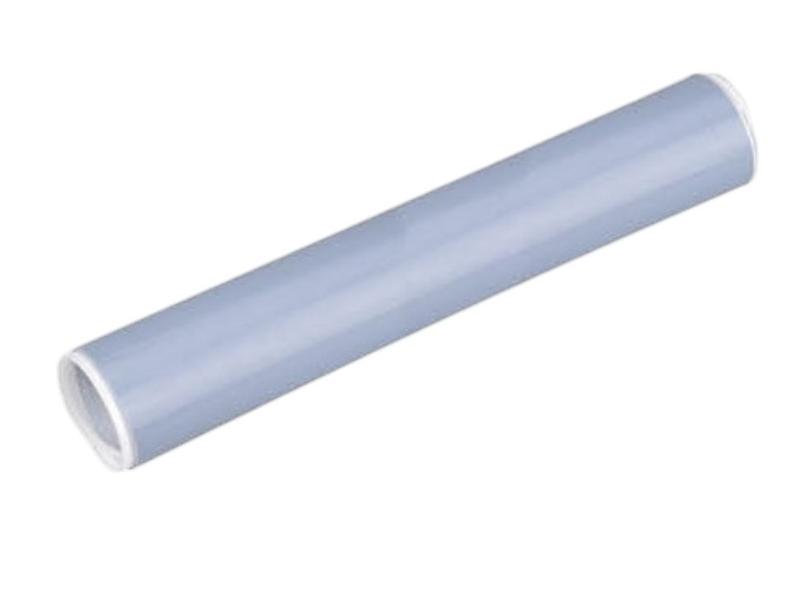

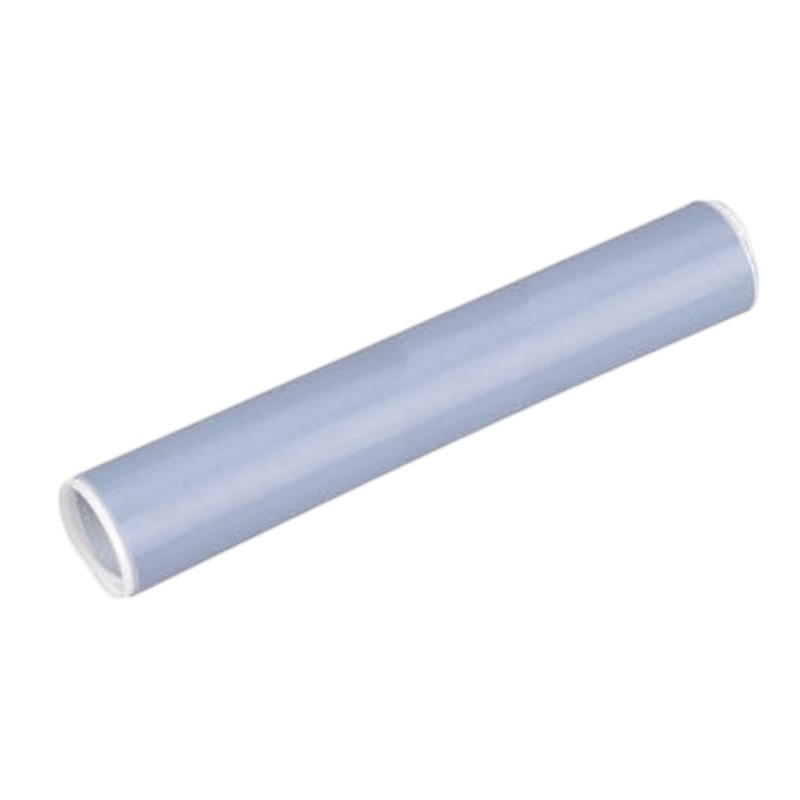

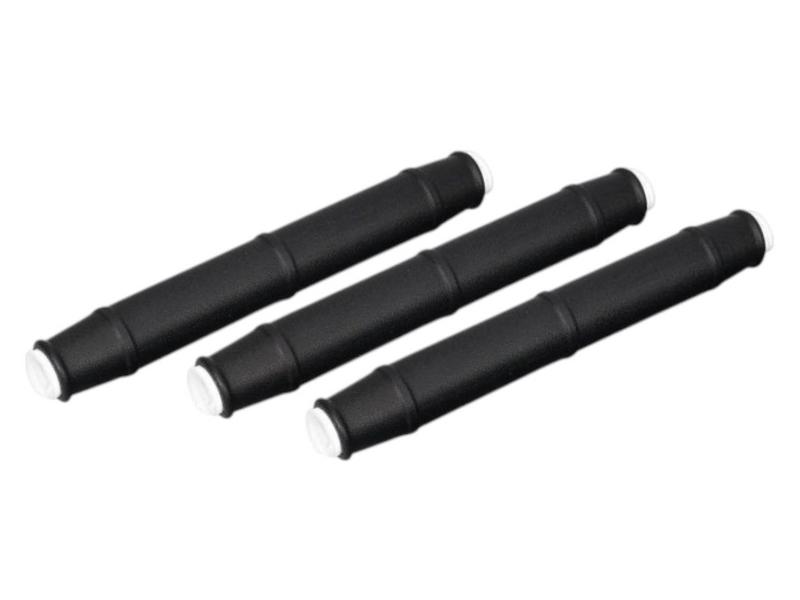

Cold-shrinkable Cable Joint
- CCMT
- CHANGCHUN,CHINA
- Based on the order quantity
- 20,000 per month
1.cold shrink cable joints can be adapted to multiple voltage levels, covering 1kV to 36kV power systems to meet different cable connection needs.
2. The cold shrink joint kit can be installed quickly and uses cold shrink technology to complete the construction without heating or complicated tools.
3. Our cold shrink termination straight joint has excellent insulation, sealing and environmental resistance properties to ensure long-term stable operation of the cable.
In power engineering construction, traditional cable joint installation typically relies on heating equipment and specialized tools, making the process complex, especially in confined spaces, outdoor locations, or flammable environments. This complexity can be limiting due to construction conditions, and installation quality is also influenced by operator experience.
We have been using pre-expanded silicone rubber technology to solve this problem. The material itself shrinks as it loses its expansion through its inherent elasticity automatically and thus makes the installation fast without even considering heating by flames or having to use complicated machinery. The results are a significant improvement in the work process, a lesser load of on-site work, and ultimately a more effortless and dependable cable jointing solution even under different environmental conditions.
Product Definition:
We have been using pre-expanded silicone rubber technology to solve this problem. The material itself shrinks as it loses its expansion through its inherent elasticity automatically and thus makes the installation fast without even considering heating by flames or having to use complicated machinery. The results are a significant improvement in the work process, a lesser load of on-site work, and ultimately a more effortless and dependable cable jointing solution even under different environmental conditions.
Product Parameters:
| Voltage U₀ /U(Uₘ) | Cable Cross Section/mm² | Diameter over Insulation/mm | Part No. Single core | Part No. Tri-core |
| Low Voltage Cold Shrink Cable Joint | ||||
| 0.6/1kV(1.2) | 25-50 70-120 150-240 300-400 | - | 0.6/1kV LJ-1(3,4,5)/1 0.6/1kV LJ-1(3,4,5)/2 0.6/1kV LJ-1(3,4,5)/3 0.6/1kV LJ-1(3,4,5)/4 | |
| Medium Voltage Cold Shrink Cable Joint | ||||
| 12/20kV(24) | 25-5 70-120 150-240 300-400 500-630 | 18-22.5 21-26.5 25.5-32 32.5-37 39-44.5 | 12/20kV LJ-1/1 12/20kV LJ-1/2 12/20kV LJ-1/3 12/20kV LJ-1/4 12/20kV LJ-1/5 | 12/20kV LJ-3/1 12/20kV LJ-3/2 12/20kV LJ-3/3 12/20kV LJ-3/4 12/20kV LJ-3/5 |
| 8.7/15kV(17.5) | 25-5 70-120 150-240 300-400 500-630 | 16-19.5 19-27.5 23.5-30 30.5-35 37-42.3 | 8.7/15kV LJ-1/1 8.7/15kV LJ-1/2 8.7/15kV LJ-1/3 8.7/15kV LJ-1/4 8.7/15kV LJ-1/5 | 8.7/15kV LJ-3/1 8.7/15kV LJ-3/2 8.7/15kV LJ-3/3 8.7/15kV LJ-3/4 8.7/15kV LJ-3/5 |
| High Voltage Cold Shrink Cable Joint | ||||
| 18/30kV(36) | 35-50 70-120 150-240 300-400 500-630 | 22-28 26.5-33 31.5-43 35.5-43 40.5-49 | 18/30kV LJ-1/1 18/30kV LJ-1/2 18/30kV LJ-1/3 18/30kV LJ-1/4 18/30kV LJ-1/5 | 18/30kV LJ-3/1 18/30kV LJ-3/2 18/30kV LJ-3/3 18/30kV LJ-3/4 18/30kV LJ-3/5 |
Product Advantages:
The cold shrink joint kit utilizes pre-expanded silicone rubber material and cold shrink installation technology, allowing for rapid installation without heating equipment, open flames, or complex tools, effectively reducing construction difficulty and on-site operational risks.
Cold shrink cable joints cover multiple voltage levels from 1kV to 36kV, suitable for cable connection and insulation protection needs in various power systems.
Simultaneously, the cold shrink termination straight joint possesses excellent insulation, waterproof, moisture-proof, weather-resistant, and chemical corrosion-resistant properties, meeting the long-term use requirements of outdoor power distribution, industrial facilities, and complex environments.
Its integrated structure and uniform shrinkage characteristics provide continuous and stable radial pressure, reducing air gaps and the risk of electrical faults, while also possessing good stress control capabilities, effectively preventing electrical tracking, aging, and corrosion, extending the service life of the cable connection system.
Product Application Scenarios:
1. Building and Commercial Electrical Systems.
The cold shrink joint for cable is suitable for power distribution systems in residential buildings, office buildings, shopping malls, hotels, etc., and can be used for cable connections in lighting circuits, distribution cabinets, HVAC equipment, security systems, and high-power electrical equipment.
2. Industrial Manufacturing and Equipment Power Supply.
It can be applied to factories, workshops, warehouses, and automated production areas for cable connections in machinery, motors, conveyor systems, and industrial control circuits.
3. Power Transmission and Distribution and Infrastructure.
The cold shrink joint for cable is an important accessory in urban power grids, rural and urban power distribution lines, substations, and underground cable systems, and can be used for low-voltage, medium-voltage, and high-voltage cable connections.
4. New Energy and Outdoor Power Projects.
Designed for solar power generation, wind power generation, energy storage systems and other clean power facilities the product offers dependable links between cable lines and electrical power devices.
Why Choose CCMT?

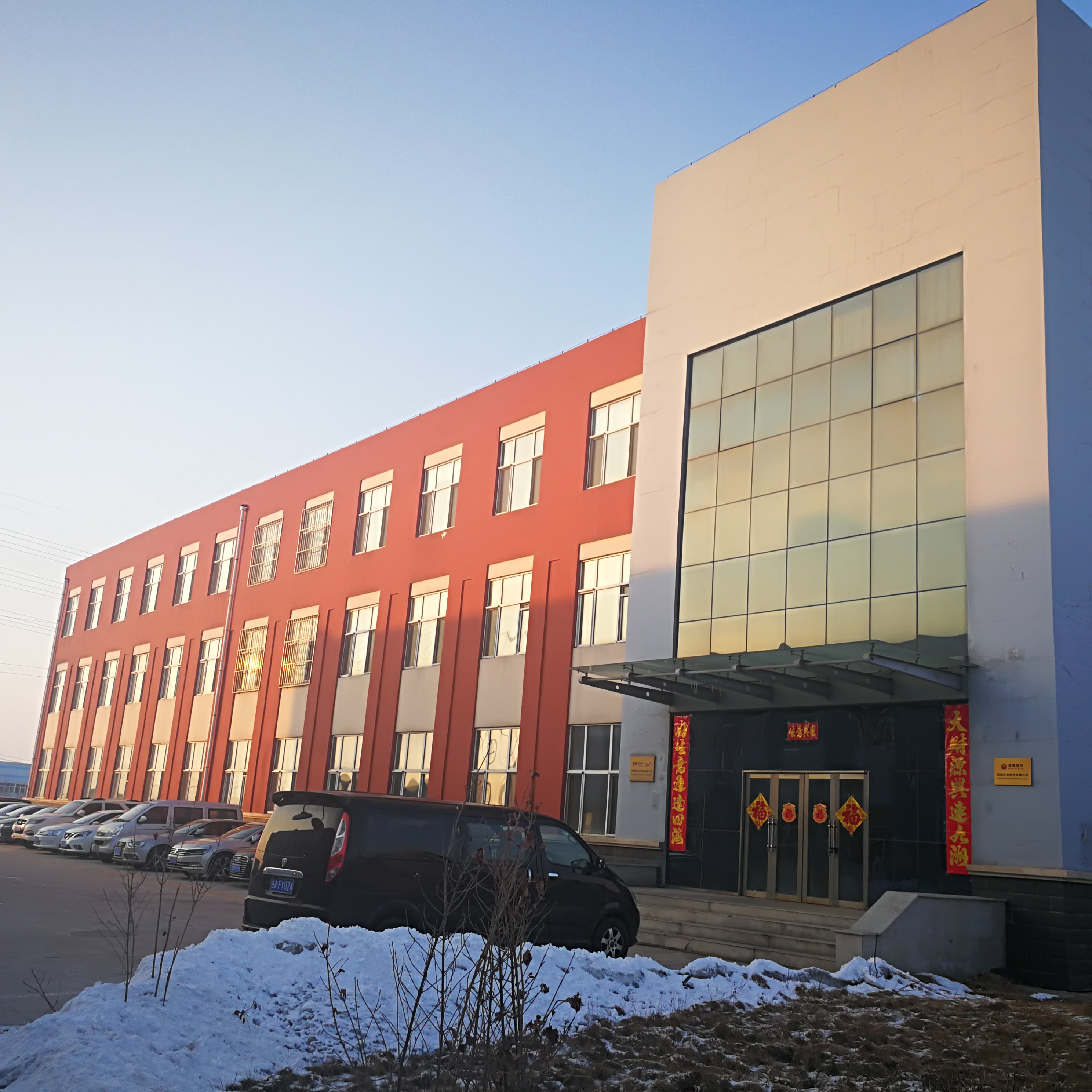

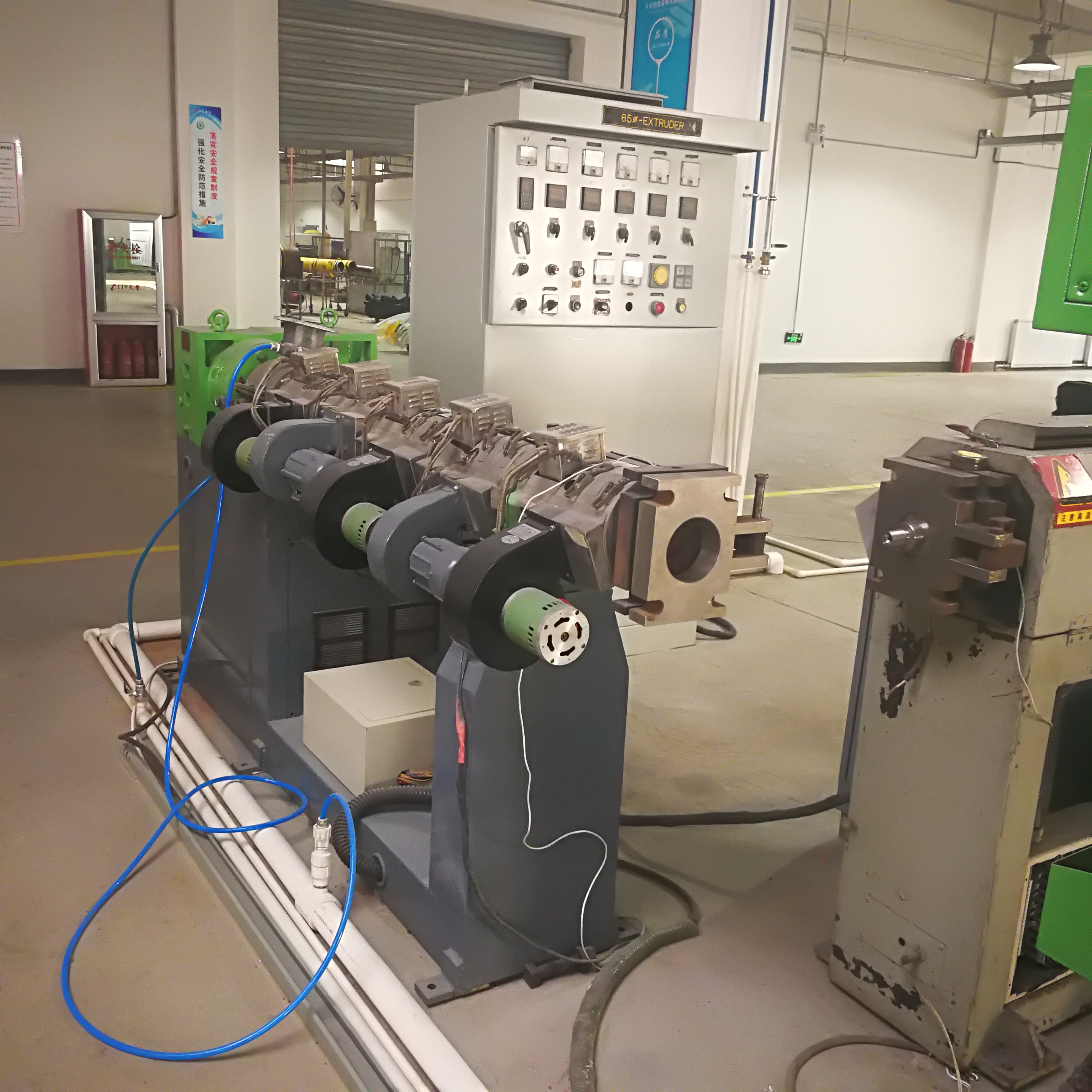

Since the early days of setting up in 1986, we have not only built 40 strong years of industry experience but also developed a well rounded technological know-ledge base and a sophisticated production system. As a result, at present, our modern production base is over 10,000 square meters and we are also running a staff of around 200 professionals while at the same time our 40 latest production equipment are being fully utilized. Moreover, different specialized production lines have been opened to meet the various market needs and the mass production of a variety of products. Take a simple example. With the production lines like molding machines (5 machines in total) and injection molding machines (3 machines), large quantities of the cold shrink cable connectors can easily be produced.
Leveraging our complete production facilities and stable manufacturing capabilities, our monthly production capacity for cold shrink cable connectors reaches 20,000 units (production capacity for other products is available upon inquiry). This allows us to meet the delivery needs of different markets and large-volume orders, providing stable and efficient supply support to global customers.
Technology R&D and Quality Certification.
Currently, our company has established an ISO 9001:2015 quality management system (No. 00123Q36311R5M/2200) and has passed international certifications such as CE, SGS, and IEC. Our products comply with environmental regulations such as RoHS and REACH.
To meet the compliance requirements of different markets, we can provide complete product testing reports and relevant certification documents to assist clients in completing project audits, product certifications, and market access.
OEM Customization and Flexible Manufacturing Capabilities.
We supply not just the standard cable accessories but will also help with the bespoke OEM/ODM services. We design products according to the needs of clients - what the application is, what the size is, what performance is required, and what the packaging method is. We give versatile and adjustable products to our customers working in diverse industries.
Global Market Cooperation Experience.
Throughout the years, we have formed partnerships with many internationally famous companies, through our manufacturing skill and high-quality standards. In our cooperation:
· Providing tens of thousands of meters of ultra-thick three-layer co-extruded heat-shrinkable composite tubing for Raychem;
· Providing tens of thousands of rolls of OEM customized insulating tape for 3M;
· Providing nearly one million meters of low-voltage heat-shrinkable tubing for ABB;
· Providing tens of tons of potting compound products for Shell.
By entering into such agreements of a prolonged nature it is clear that international clients have acknowledged and recognized not only the quality of products offered by Kemister together with his company but also the latter’s capabilities in technology and in providing delivery on a major scale.
International Exhibitions and Market Expansion.
In the last year, we have taken part in several global power and energy sector exchange initiatives. We highlighted cable accessory R&D capability, manufacturing, and power connection solutions comprehensively at the 32nd China International Power Equipment and Technology Exhibition in November 2025.
FAQ:
1. What pretreatment is required for the cold shrink cable joint for power cable before installation?
The outside plastic layer, the metal shield, and the inner insulation layer of the cable need to be carefully stripped according to the required standards. The layer of insulation should be wiped down and buffed in order to make it perfectly smooth and the size of it should match with the requirement for the joint. None of the materials need to be primed especially before you begin the installation.
2. How to ensure the insulation reliability of the cold shrink cable joint for power cable during long-term operation?
The silicone rubber material has excellent dielectric strength and anti-tracking properties. Combined with constant radial shrinkage pressure, it can eliminate interfacial air gaps. At the same time, the stress cone structure can effectively disperse electric field concentration and delay the aging process.
