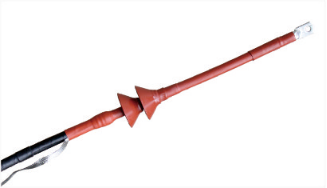

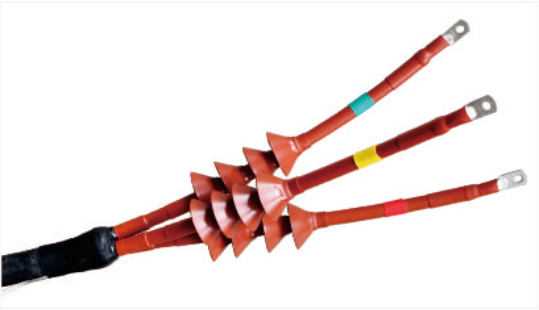

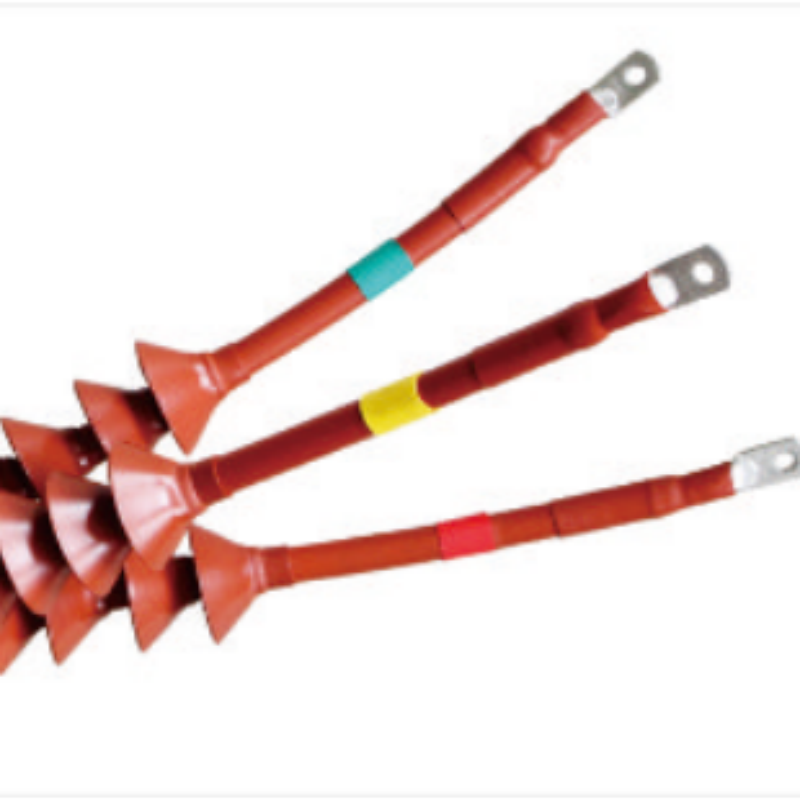

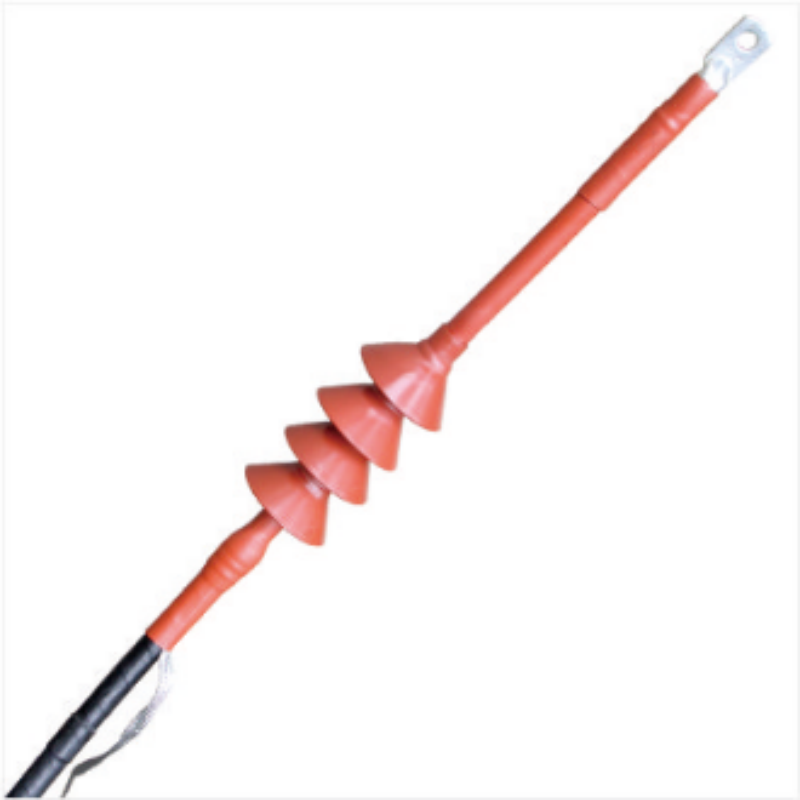

Heat-Shrinkable Cable Termination
- CCMT
- CHANGCHUN,CHINA
- Based on the order quantity
- 10,000 units per month
1. This set covers various power systems from 1 volt low voltage up to 36kV medium/high voltage. It is an excellent choice for installing terminations on single-core and three-core XLPE power cables for the use of the cable terminations in distribution at any level.
2. A heat shrinkable cable termination kit can help to even out the electric field distribution so as to minimize the possibility of partial discharges and at the same time enhance the operational reliability of cable endings.3. There are several advantages of heat shrinkable termination: it has capabilities as the insulator, sealant for preventing water, and mechanical protection, and is widely applied in substations, urban power grids, industrial power distribution, renewables, and rail transit.
When the cable's outer shielding is removed in power system termination, the electric field can be heavily focussed at such location. A poor termination design might cause different problems like partial discharge, distortion of electric fields, flashover under water and insulation aging. Beside that, the constant exposure of terminations to UV light, rain, temperature fluctuations, and mechanical stress reduces their service life and raises the maintenance costs, respectively.
Professional Solution:
In order to handle these problems, our heat-shrinkable cable terminations make use of high-grade cross-linked polyolefin (XLPO) materials and have a multi-layer protective structure with stress-control tubing, electrical insulating tubing, and rain sheds. After the heat-shrink installation, the terminations become an almost perfect fitting with the cable, forming a single layer of insulation and sealing system with no visible seams, thereby, ensuring electric field homogeneous distribution, stopping the moisture penetration, preventing partial discharge and insulation failure, and at the end, the power system is safe, stable, and operates for a long time.
Specifications for Multi Core Heat Shrinkable Terminations:
Test Item | Unit | Technical Requirement | Test Result |
Marking of Tested Insulated Core | - | / | Red core / Yellow core / Green core |
AC Withstand Voltage Test | No breakdown, no flashover | Pass / Pass / Pass | |
--117kV, 5min | No breakdown, no flashover | Pass / Pass / Pass | |
--Wet Condition, 104kV, 1min | |||
Partial Discharge Test (45kV) | pC | Max. 10 | 0.9 / 1.1 / 1.0 |
(Sensitivity: 0.8pC) | |||
Load Cycle Test (3 cycles) | - | Conductor energized; heating cycle 8h, stable temperature ≥2h, cooling ≥3h; | Comply / Comply / Comply |
Conductor temperature during heating: 95~100℃ | |||
Partial Discharge Test (45kV) | pC | Max. 10 | 1.2 / 1.2 / 1.0 |
(Sensitivity: 0.8pC) | |||
Impulse Voltage Test (±200kV, 10 shots each polarity) | - | No breakdown, no flashover | Pass / Pass / Pass |
AC Withstand Voltage Test (104kV, 4h) | - | No breakdown, no flashover | Pass / Pass / Pass |
Visual Inspection | - | / | No cracks found on terminal fittings, rain sheds and branch sleeves |

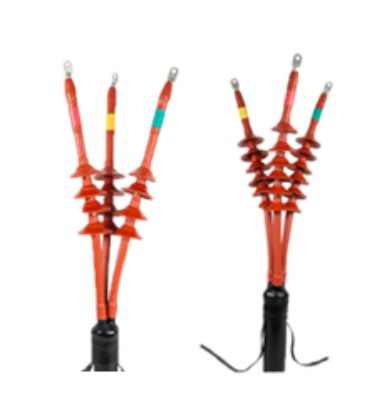

Advantages of Multi-core Heat Shrink Terminations:
1. Excellent electrical performance ensures long-term, stable operation.
The cable termination set in this kit employs highly resistant material made from cross-linked polyolefin (XLPO) and provides stress-control tube that helps electric field distribution becomes homogeneous. With this, the risk of the electric arc, and therefore insulation breakdown, is reduced.The product also withstood the 117 kV power-frequency withstand voltage test (5 minutes), 104 kV power-frequency withstand voltage test (4 hours) and ±200 kV lightning impulse withstand voltage tests (10 each for positive and negative). No breakdown or flashover took place during testing.
2. Superior sealing and protective performance, suitable for complex operating conditions.
The termination after heat shrinking tightly holds the cable end with minimum movement providing you with a durable layer which offers the necessary insulation, sealing and mechanical protection. It works very well in moisture, dust and dirt ingress prevention and it offers a high resistance against humidity, weathering and corrosion. The product has successfully gone through the 104 kV wet withstand voltage test and three-cycle thermal cycle (conductor temperature 95-100°C); all post-test checks have been carried out and no cracks or damage in any parts have been found which has proved that it is quite suitable for outdoor and industrial use under highly humid and hot conditions.
3. Efficient installation and broad applicability.
These types of heat-shrinkable cable terminations use a heat-shrink method in their installation and, after heating, they will snugly fit the cable. These terminations have no complicated installation tool and hence, allow for a quick installation as well as an easy maintenance; as such, the construction efficiency will be increased and the installation cost will be decreased. The product line is from 1kV (low voltage) to 36kV (high voltage) power systems, and they are suitable for both single-core and three-core XLPE power cables; besides, a tailor-made (OEM/ODM) service is provided to fulfill the specific requirements of the various projects.
Product Application Scenarios:
· Building Power Distribution Systems: The application in power distribution systems of residential buildings, commercial complexes and office buildings. It protects and stabilizes the cable connections for the terminal equipment.
· Industrial Manufacturing: Applied in industrial sectors such as factories, mining, steel, cement, and petrochemicals.
· Urban Power Grids: Used in urban distribution networks, ring main units (RMUs), box-type substations, and underground cable line terminations.
· Substations: Suitable connections in the realm of transformers, high voltage switchgear, GIS apparatus, and busbars, ensuring stable and reliable insulation and stress control for cable terminations.
· New Energy Sector: Used in projects such as wind power, photovoltaic power generation, and energy storage stations, meeting requirements for weather resistance, moisture protection, and insulation during long-term outdoor operation.
· Rail Transit and Infrastructure: Suitable for power distribution projects in subways, high-speed railways, airports, ports, and municipal infrastructure.
About CCMT:
40 years of manufacturing expertise, dedicated to the R&D and production of cable accessories.
This company has been specializing exclusively in the R&D and sales of power and communication cable accessories since its foundation in 1986. Through many years of technical knowledge and hands-on manufacturing, we have set up a complete system covering everything from product development, material application, and manufacturing to quality control and delivery, making sure that customers all over the world are satisfied with our long-lasting and trustworthy cable accessory products.

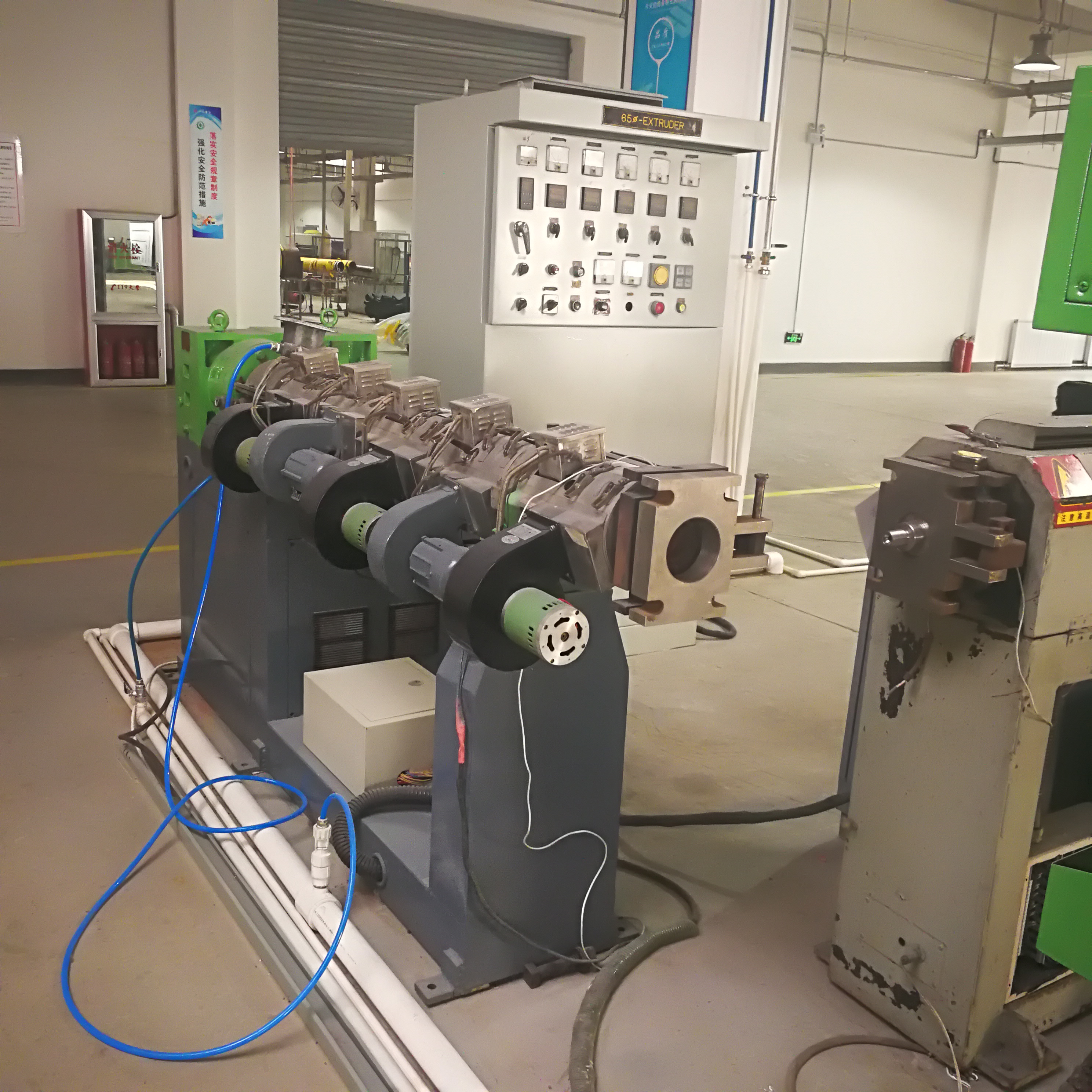

We are proud of our production facility, which consists of a state-the-art modern manufacturing workshop covering an area of over 10,000 square meters. The facility is powered by a well-versed team of 200-plus professionals along with about 40 major production devices. We are equipped to cater diverse manufacturing requirements of our clients through various manufacturing processes such as compression and injection molding, extrusion, expansion etc. The flexibility in our production process helps us meet demands in large volumes for our customer's products.
Stable production capacity ensuring project delivery.
Reliable and timely material supply is vital in carrying out engineering projects as well as ensuring continuous procurement. By setting up various specialized production lines and continually refining our manufacturing methods, the company not only increases the pace of order deliveries but also consistently delivers high-quality goods.
Take, for example, our heat-shrinkable cable terminations. We can turn out a maximum of 10,000 sets per month (figures for our other products would be upon inquiry). This level of capacity enables us to handle mass procurement and assure uninterrupted supply, thus, giving the customer a stable and effective supply guarantee.
Comprehensive quality system meeting international market standards.
We adhere to a rigorous quality management system, exercising strict control over the entire production process. We hold ISO 9001:2015 certification (No. 00123Q36311R5M/2200), and many of our products comply with international standards such as CE, SGS, and IEC, as well as environmental regulations including RoHS and REACH.
Extensive experience in international cooperation.
Over the years, due to the excellent quality of our product and our big scale of production, we have built up long-term cooperation with a number of well-known foreign companies, and at the same time, continuously providing OEM and contract manufacture to clients all over the world. Our joint programs cover:
· Supplying tens of thousands of meters of extra-thick, three-layer co-extruded heat-shrinkable composite tubing to RAYCHEM;
· Supplying nearly one million meters of low-voltage heat-shrinkable tubing to ABB;
· Providing dozens of tons of potting compounds to SHELL, among others.
These long-standing partnerships demonstrate the recognition international clients have for CCMT’s product quality, manufacturing capabilities, and delivery performance.
Continuously Expanding the Global Market.
CCMT took part as a participant at the 32nd China International Exhibition on Electric Power Equipment and Technology in November 2025. We have demonstrated our cable accessories, cable manufacturing capability, and power connection solutions to a vast number of international clients. By continuing to take part in industry exhibitions around the world, we aim at maintaining and deepening our collaboration with distributor channels, engineering contractors, cable makers, and end customers worldwide. We can therefore constantly offer more excellent and high-efficient products and services to the expanding market.
FAQ:
1. Do the heat shrink cable terminations meet relevant electrical performance requirements?
Yes. The products have passed type tests—including power-frequency withstand voltage, wet withstand voltage, partial discharge, thermal cycling, and lightning impulse tests—and meet the operational requirements of medium- and high-voltage power systems.
2. Is the installation of multi core heat shrink terminations complex?
The installation process is well-established; the heat-shrink installation can be completed simply by using a heating tool, such as a heat gun. This ensures high installation efficiency and makes the product suitable for rapid on-site installation.
